Same model may have multiple batches, images only for reference.

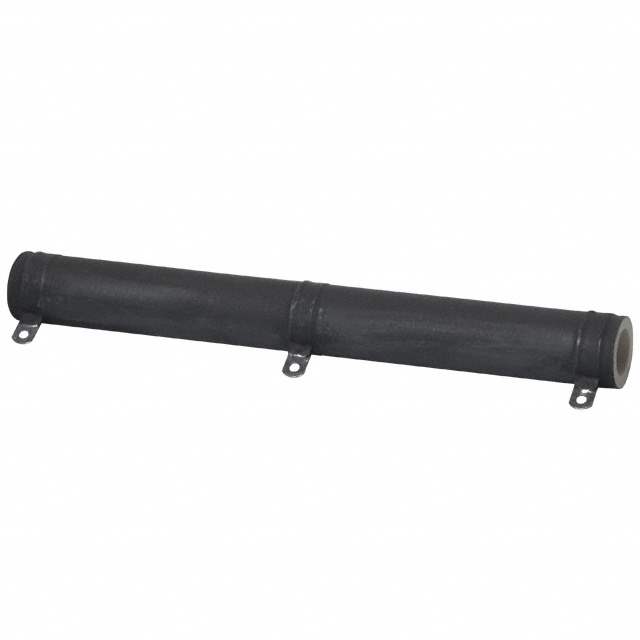

HLT22507Z1K000KJ Real Image
Same model may have multiple batches, images only for reference.

HLT22507Z1K000KJ

Part No HLT22507Z1K000KJ
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 1K OHM 10% 225W
Datasheet
HLT22507Z1K000KJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Resistance (Ohms) 1k
Tolerance ±10%
Power (Watts) 225W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C to 350°C
Coating, Housing Type Silicone Coated
Mounting Feature Brackets (not included)
Lead Style Solder Lugs
Dimension Radial, Tubular
Win Source Part Number 118296-HLT22507Z1K000KJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HLT22507Z1K000KJ CAD Model

Description

The Vishay resistor.

  • Type: Wirewound
  • Supply and Demand: Balanced
  • Manufacturer Part Number: 118296-HLT22507Z1K000KJ
  • Status: Obsolete (EOL)
  • Power: 225W
  • Resistance: 1k ohms
  • Tolerance: ±10%
  • Temperature Coefficient: ±30ppm/°C
  • Operating Temperature: -55°C to 350°C
  • Dimension: Radial, tubular
