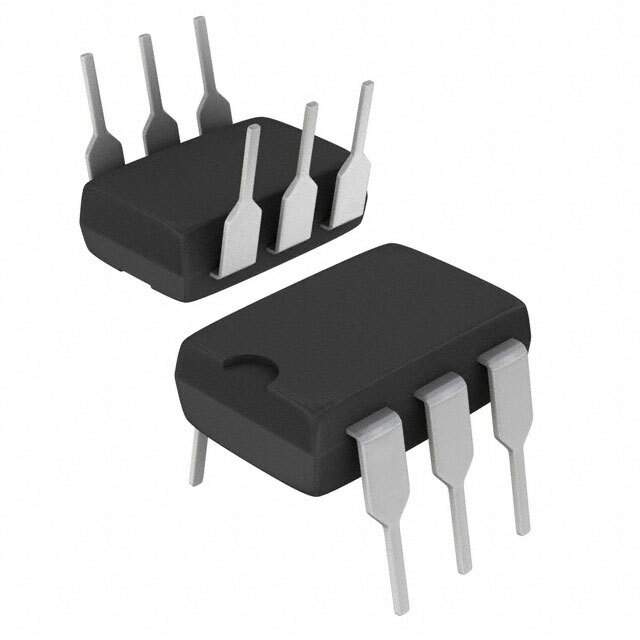

H11AA1-X001

Name: H11AA1-X001
Brand: Vishay
SKU: 1382196
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	H11AA1-X001
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 5.3KV TRANS W/BASE 6DIP / Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Datasheet	H11AA1-X001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators>Transistor, Photovoltaic Output Optoisolators
Mfr	Vishay
Series	-
Package	Tube
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	-
Input Type	AC, DC
Output Type	Transistor with Base
Voltage - Output (Max)	30V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Temperature Range - Operating	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Base Product Number	H11
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.49.8000
Standard Package	50 pcs
Win Source Part Number	1382196-H11AA1-X001
Ultra Librarian 3D Model	Ultra Librarian H11AA1-X001 CAD Model

Alternative Products

Description

The H11AA1-X001 is an optoisolator from Vishay.

Output Type: Transistor, Photovoltaic Output
Input Type: AC and DC
Maximum Forward Current: 60 mA
Forward Voltage: 1.2V
Voltage Isolation: 5300Vrms
Maximum Output Voltage: 30V
Package: 6-DIP (0.300", 7.62mm)
Operating Temperature: -55°C to 100°C
ECCN: EAR99
