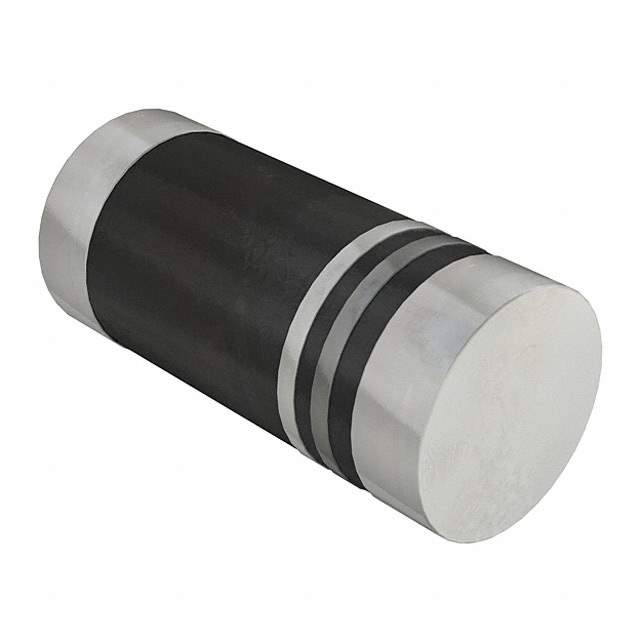

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series SUPERECTIFIER®
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 500 mA
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Capacitance @ Vr, F 4pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-213AA (Glass)
Supplier Device Package DO-213AA (GL34)
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number GL34
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names GL34D-E3/83GITR,GL34D-E3/83GIDKR,GL34D-E3/83-ND,GL34D-E3/83GICT
Standard Package 9,000
Win Source Part Number 980203-GL34D-E3/83
Ultra Librarian 3D Model Ultra Librarian GL34D-E3/83 CAD Model

Description

The GL34D-E3/83 is a standard recovery diode that is suitable for various applications.

  • Win Source Part Number: 980203-GL34D-E3/83
  • Maximum DC Reverse Voltage: 200V
  • Current Average Rectified (Io): 500mA
  • Reverse Recovery Time (trr): 1.5μs
  • Capacitance: 4pF @ 4V, 1MHz
  • Operating Temperature Range: -65°C to 175°C
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
