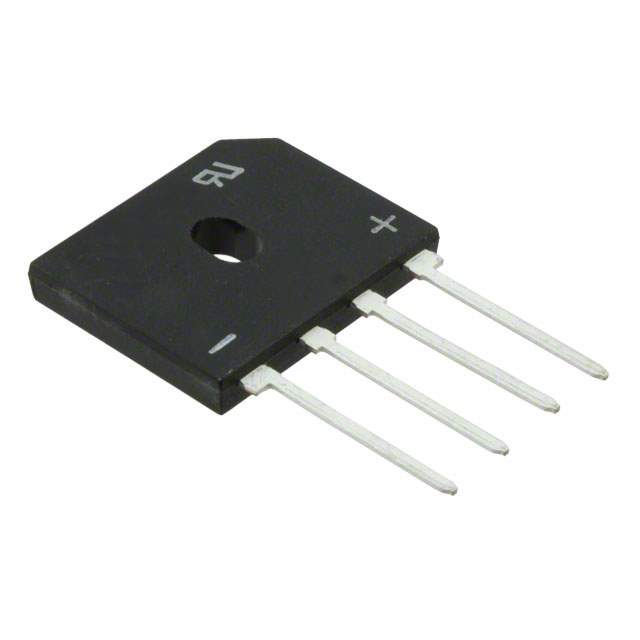

GBU6K-E3/45 Real Image
Same model may have multiple batches, images only for reference.

GBU6K-E3/45

Part No GBU6K-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 6A 800V GBU / Diode Rectifier Bridge Single 800V 6A 4-Pin Case GBU Tube
Datasheet
GBU6K-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 3.8A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 6A
Current - Reverse Leakage @ Vr 5μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 775023-GBU6K-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name GBU6K
Introduction Date June 18, 1998
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian GBU6K-E3/45 CAD Model

Description

Vishay Semiconductor Diodes Division GBU6K-E3/45 is a single-phase standard diode type with a current rating of 3.8A and a voltage rating of 800V.

  • Mounting Style: through-hole
  • Operating temperature range: -55°C ~ 150°C (TJ)
  • Current reverse leakage: 5µA @ 800V
  • Voltage forward: 1V @ 6A
