Same model may have multiple batches, images only for reference.

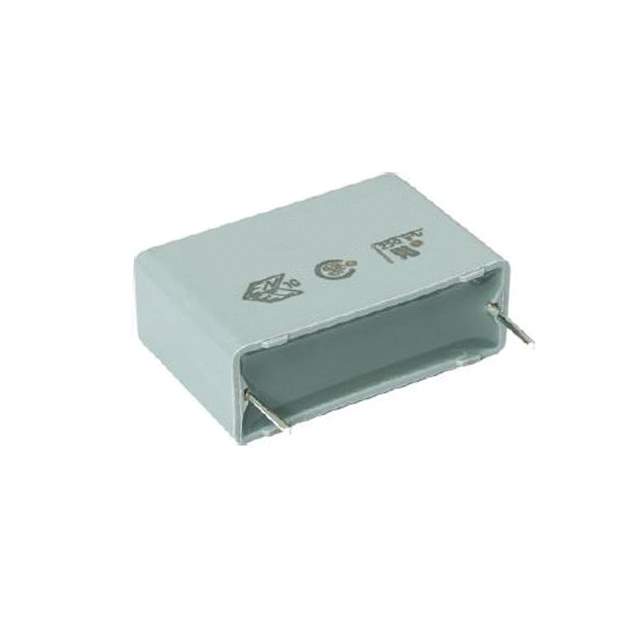

F17724102000 Real Image
Same model may have multiple batches, images only for reference.

F17724102000

Part No F17724102000
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 0.1UF 10% 630VDC RADIAL / 0.1 µF Film Capacitor 310V 630V Polyester, Metallized Radial
Datasheet
F17724102000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series F1772
Package Bulk
Capacitance 0.1 µF
Tolerance ±10%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.689" L x 0.335" W (17.50mm x 8.50mm)
Height - Seated (Max) 0.591" (15.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings X2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0060
Other Names BC3232,17724102000,F17724102000-ND
Standard Package 325
Win Source Part Number 1147874-F17724102000
Ultra Librarian 3D Model Ultra Librarian F17724102000 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 17724102000 is a radial package film capacitor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 0.1 µF
  • Tolerance: ±10%
  • Voltage Rating: 310V AC and 630V DC
  • Application: EMI and RFI suppression
  • Height: 0.591" (15.00mm) when seated
  • Dimension: 0.689" L x 0.335" W (17.50mm x 8.50mm)
