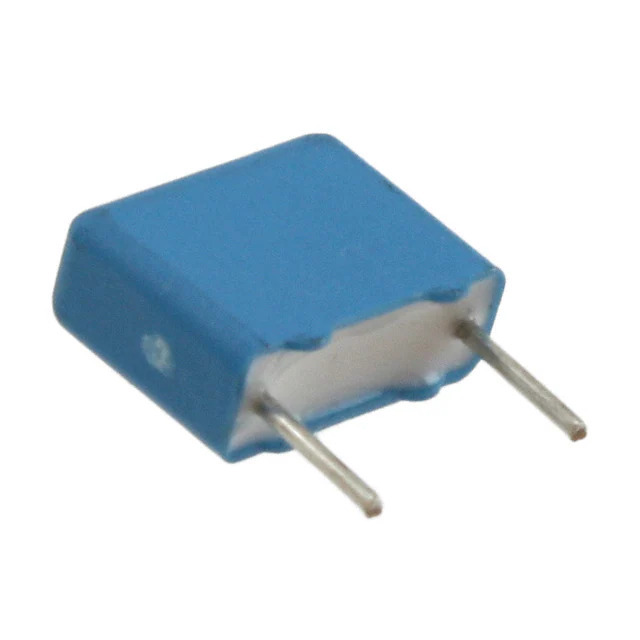

Same model may have multiple batches, images only for reference.
PHE450MK4150JR05 Kemet
Same model may have multiple batches, images only for reference.

PHE450MK4150JR05

Part No PHE450MK4150JR05
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1500PF 5% 630VDC RADIAL / 1500 pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial
Datasheet
PHE450MK4150JR05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE450
Package Box
Product Status Active
Capacitance 1500 pF
Tolerance ±5%
Voltage Rating - AC 300V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications High Frequency, Switching
Ratings -
Features -
Base Product Number PHE450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1360611-PHE450MK4150JR05
Ultra Librarian 3D Model Ultra Librarian PHE450MK4150JR05 CAD Model

Description

The KEMET PHE450MK4150JR05 is a film capacitor with a capacitance of 1500 pF and a voltage rating of 630V. It is designed for high frequency and switching applications.

  • Capacitance: 1500 pF
  • Voltage Rating: 630V
  • Application: High Frequency and Switching
  • Tolerance: ±5%
  • Lead Spacing: 0.295" (7.50mm)
  • Mounting Type: Through Hole
  • Size: 0.394" L x 0.157" W (10.00mm x 4.00mm)
  • Temperature Range: -55°C to 105°C
  • Material: Polypropylene (PP), Metallized
  • Packaging: Box
  • REACH: Unaffected
  • Status: Active
