The DG9421DV-T1 is a single-pole, single-throw (SPST) analog switch manufactured by Vishay. It's designed to provide low on-resistance and low charge injection for precision switching applications. This switch is ideal for signal routing, sample-and-hold circuits, and other analog signal processing tasks.

Applications

• Data Acquisition Systems: Used for switching analog signals in data acquisition systems.
• Audio Signal Routing: Employed in audio mixers, amplifiers, and other audio equipment for signal selection and routing.
• Video Signal Switching: Utilized in video switching matrices, cameras, and displays for signal selection and routing.
• Battery-Powered Devices: Used in portable devices for power management and signal switching due to its low power consumption.
• ATE (Automatic Test Equipment): Integrated into test equipment for signal switching and routing.

Features

• Low On-Resistance: Minimizes signal distortion and voltage drop.
• Low Charge Injection: Reduces switching transients and ensures signal integrity.
• Single-Supply Operation: Operates from a single power supply, simplifying the design process.
• Wide Operating Voltage Range: Provides flexibility in power supply selection.
• Small Package: Available in a small package for space-constrained applications.
• TTL/CMOS Compatible: Compatible with TTL and CMOS logic levels for easy interfacing.

Benefits

• High Signal Integrity: Ensures accurate and reliable signal transmission.
• Reduced Distortion: Minimizes signal distortion and improves overall system performance.
• Simplified Design: Simplifies the design process with its single-supply operation and TTL/CMOS compatibility.
• Space Savings: Reduces board space requirements due to its small package.
• Versatile Application: Suitable for a wide range of analog switching applications.

Additional Details

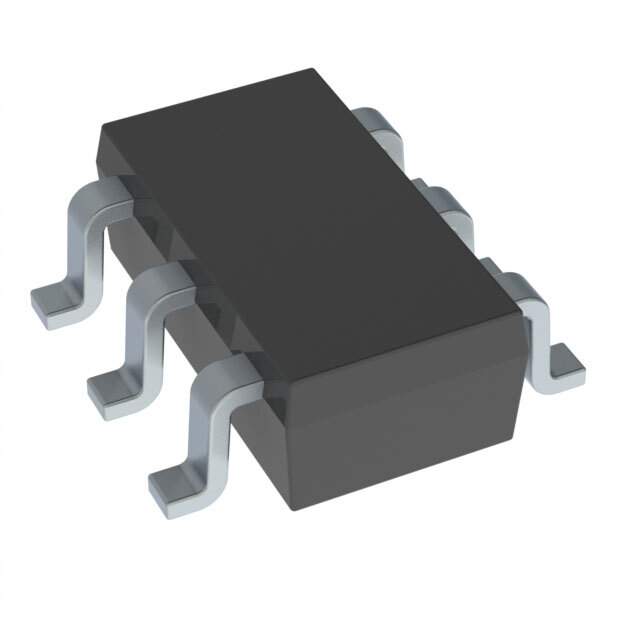

The DG9421DV-T1 is packaged in a small SOT-23 package. It is crucial to adhere to the recommended operating voltage range and temperature limits to ensure reliable operation. Key specifications include the on-resistance (Ron), charge injection (Qinj), and supply voltage (Vcc). The "-T1" suffix typically indicates a specific tape and reel packaging for automated assembly. The control input requires a specific voltage level to turn the switch on or off, which should be considered in the circuit design. ESD protection is usually integrated into the device.
