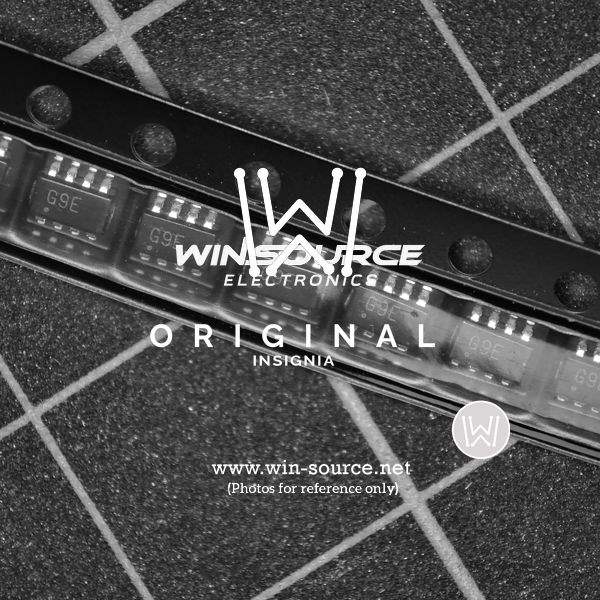

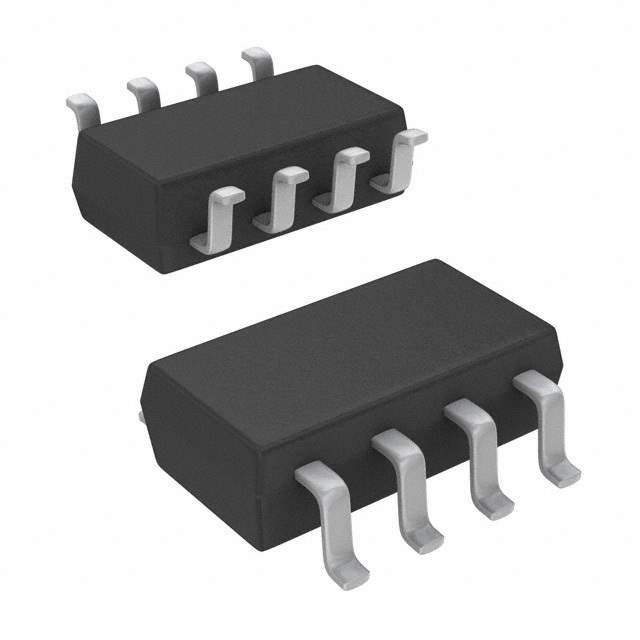

DG449DS-T1-E3 Real Image DG449DS-T1-E3 Real Image
DG449DS-T1-E3 Real Image DG449DS-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

DG449DS-T1-E3

Part No DG449DS-T1-E3
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description High Voltage Single SPDT Analog Switch in SOT23-8
Datasheet
DG449DS-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Vishay
Packaging Reel - TR
Switch Circuit SPDT
Number of Circuits 1
On-State Resistance (Maximum) 45 Ohm
Channel-to-Channel Matching (ΔRon) 5 Ohm (Maximum)
Operating Supply Voltage 7 V ~ 36 V
Dual Voltage Supply ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Maximum) 146ns, 104ns
Charge Injection 5pC
Channel Capacitance (CS(off), CD(off)) 8pF
Current - Leakage (IS(off)) (Maximum) 1nA
Crosstalk -80dB @ 1MHz
Operating Temperature Range -40°C ~ 85°C (TA)
Package SOT-23-8
Manufacturer Package SOT-23-8
Win Source Part Number 1167591-DG449DS-T1-E3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name DG449
Introduction Date October 15, 2006
ECCN EAR99
Country of Origin Malaysia
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian DG449DS-T1-E3 CAD Model

Description

The Vishay DG449DS-T1-E3 is an SPDT switch circuit that comes in an SOT-23-8 package.

  • Circuit: SPDT
  • Package / Case: SOT-23-8
  • Voltage Supply (Dual): ±4.5V to 20V
  • Operating Supply Voltage: 7V to 36V
  • On-State Resistance: 45 Ohm
  • Charge Injection (Max): 5pC
  • Crosstalk: -80dB @ 1MHz
  • Channel Matching (ΔRon): 5 Ohm (Maximum)
  • Leakage Current (Max): 1nA
  • Switch Time (Turn-On): 146ns
  • Switch Time (Turn-Off): 104ns
  • Channel Capacitance: 8pF
  • Family: DG449
  • Category: Integrated Circuits (ICs)
  • Introduction Date: October 15, 2006
  • Alternative Parts: MAX4649EKA, MAX4649EKA-T, and MAX4649EKA+
  • Estimated EOL Date: 2026
  • Popularity: Medium
  • Supply and Demand Status: Limited
