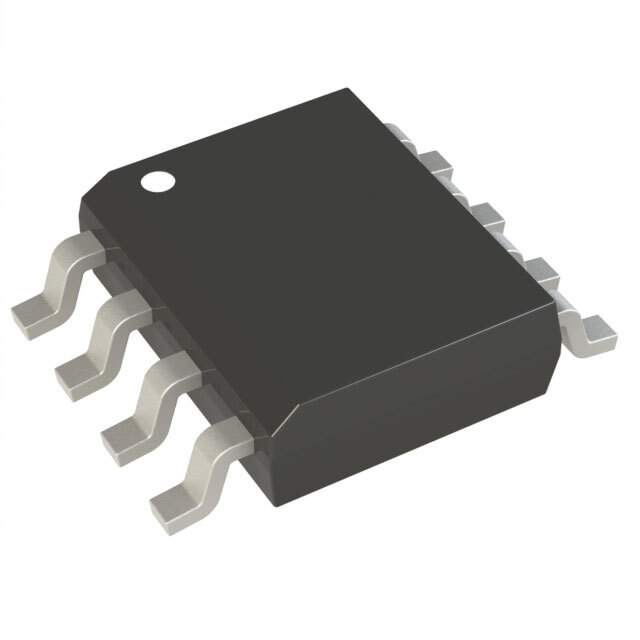

DG417BDY-E3 Real Image
Same model may have multiple batches, images only for reference.

DG417BDY-E3

Part No DG417BDY-E3
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description Precision Monolithic Quad SPST CMOS Analog Switches
Datasheet
DG417BDY-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Vishay
Packaging Tube
Switch Circuit SPST - NC
Number of Circuits 1
On-State Resistance (Maximum) 25 Ohm
Operating Supply Voltage 12V
Dual Voltage Supply ±15V
Switch Time (Ton, Toff) (Maximum) 89ns, 80ns
Charge Injection 38pC
Channel Capacitance (CS(off), CD(off)) 12pF, 12pF
Current - Leakage (IS(off)) (Maximum) 250pA
Operating Temperature Range -40°C ~ 85°C (TA)
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Package 8-SOIC
Win Source Part Number 1167543-DG417BDY-E3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name DG417B
Introduction Date February 03, 2003
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian DG417BDY-E3 CAD Model

Description

The Vishay DG417BDY-E3 is a single-pole single-throw (SPST) switch circuit that is used in various electronic applications.

  • Charge Injection: 38pC
  • Maximum On-State Resistance: 25 Ohm
  • Switch Time: 89ns
  • Off Time: 80ns
  • Voltage Supply: ±15V
  • Operating Temperature Range: -40°C to 85°C
  • Package Type: 8-SOIC (0.154", 3.90mm Width)
  • Supply and Demand: Limited
  • Popularity: Medium
