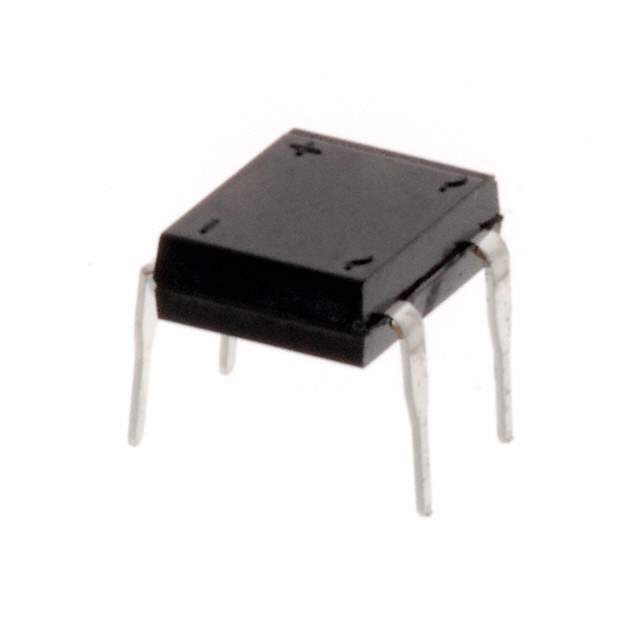

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 100V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 1A
Current - Reverse Leakage at Vr 5μA at 100V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-EDIP
Supplier Device Package DFM
Part Number Series DF01
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804875-DF01M-E3/45
Ultra Librarian 3D Model Ultra Librarian DF01M-E3/45 CAD Model

Description

This electronic component is a single-phase diode type that has a current - average rectified (Io) of 1A and a voltage - peak reverse (maximum) of 100V.

  • Current - Average Rectified (Io): 1A
  • Voltage - Peak Reverse (Maximum): 100V
  • Voltage - Forward (Vf) (maximum) @ If: 1.1V @ 1A
  • Current - Reverse Leakage @ Vr: 5μA @ 100V
  • Mounting Style: Through-Hole
  • Technology: Standard
