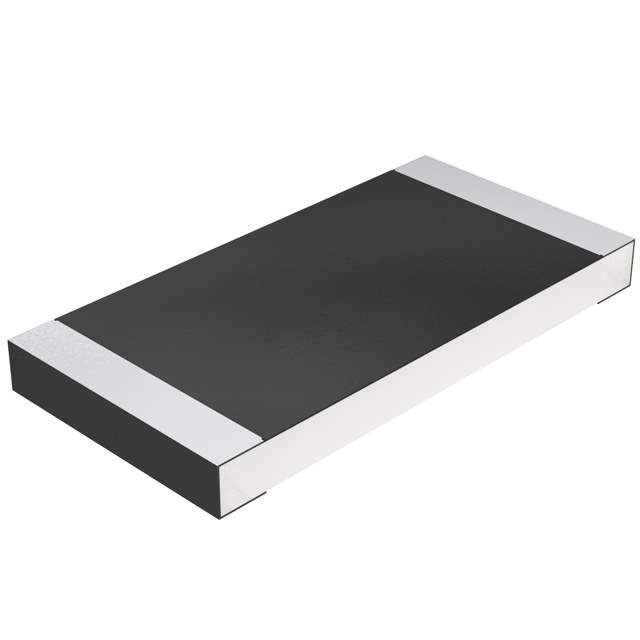

CRCW2512220KJNEG Real Image
Same model may have multiple batches, images only for reference.

CRCW2512220KJNEG

Part No CRCW2512220KJNEG
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 220K OHM 5% 1W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Resistance 220 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.248" L x 0.124" W (6.30mm x 3.15mm)
Height - Seated (Maximum) 0.028"
Number of Terminations 2
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807042-CRCW2512220KJNEG
Ultra Librarian 3D Model Ultra Librarian CRCW2512220KJNEG CAD Model

Description

The Vishay Dale CRCW2512220KJNEG is a thick film surface mount resistor with a resistance of 220 kOhms and a power rating of 1W.

  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature Range: -55°C to 155°C
  • Package: 2512
  • Height: 0.028"
  • Compliance: RoHS
