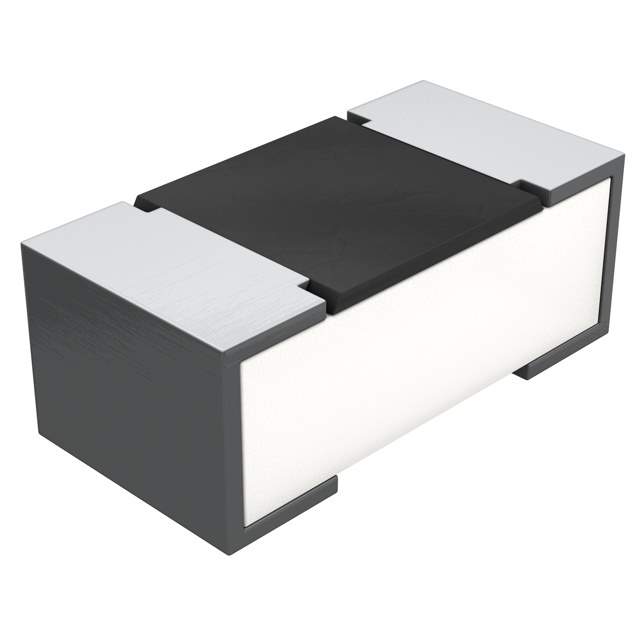

CRCW0201680RFNED Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 680 Ohms
Tolerance ±1%
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0201 (0603 Metric)
Supplier Device Package 0201
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
Base Product Number CRCW0201
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-CRCW0201680RFNEDTR,541-CRCW0201680RFNEDDKR,CRCW0201680RFNED-ND,D10/CRCW0201 200 680R 1% ET7 E3,541-CRCW0201680RFNEDCT
Standard Package 10,000
Win Source Part Number 1327162-CRCW0201680RFNED
Ultra Librarian 3D Model Ultra Librarian CRCW0201680RFNED CAD Model

Description

The Vishay Dale CRCW0201680RFNED is a chip resistor in the category of resistors.

  • Packaging: reel - TR
  • Standard Package: 10,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Power (Watts): 0.05W, 1/20W
  • Composition: thick film
  • Number of Terminations: 2
  • Resistance: 680 Ohms
  • Manufacturer: Vishay Dale
  • Win Source Part Number: 1327162-CRCW0201680RFNED
  • Temperature Range - Operating: -55°C ~ 155°C
  • Case/Package: 0201 (0603 Metric)
