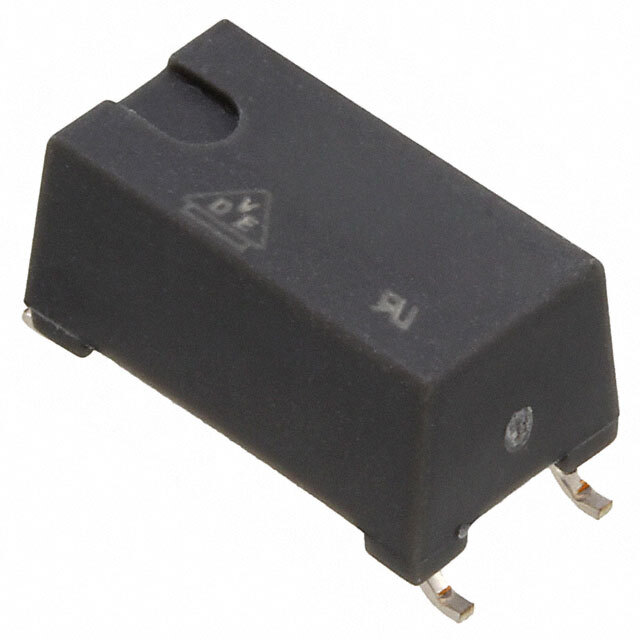

Same model may have multiple batches, images only for reference.
CNY64ABST Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CNY64ABST

Part No CNY64ABST
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 8.2KV 1CH TRANS 4-SMD
Datasheet
CNY64ABST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Channels 1
Voltage - Isolation 8200Vrms
Current Transfer Ratio (Min) 80% @ 5mA
Current Transfer Ratio (Max) 240% @ 5mA
Turn On / Turn Off Time (Typ) 5µs, 3µs
Rise / Fall Time (Typ) 2.4µs, 2.7µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 32V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.32V
Current - DC Forward (If) (Max) 75 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Surface Mount
Case / Package 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1570493-CNY64ABST
Ultra Librarian 3D Model Ultra Librarian CNY64ABST CAD Model
