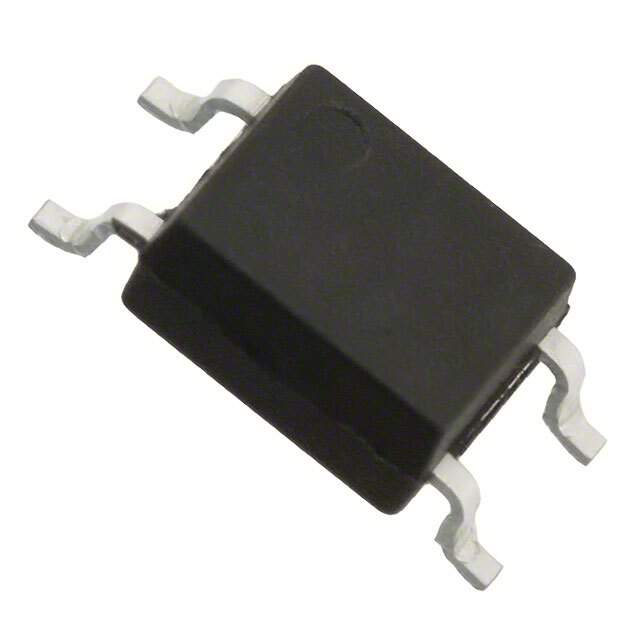

HCPL-354-000E

Name: HCPL-354-000E
Brand: Broadcom Limited
SKU: 457781
Availability: InStock
Rating: 4.85 (53 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCPL-354-000E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 3.75KV TRANS 4MINIFLAT
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Broadcom Limited
Packaging	Reel - TR
Status	Active
Number of Channels	1
Isolation Voltage	3750Vrms
Minimum DC Current Transfer Ratio	20% @ 1mA
Maximum DC Current Transfer Ratio	400% @ 1mA
Rise and Fall Time	4μs, 3μs
Input Type	AC, DC
Output Type	Transistor
Maximum Output Voltage	35V
Channel Output Current	50mA
Forward Voltage	1.2V
Continuous forward current- Max	50mA
Vce Saturation (Max)	200mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	4-Mini-Flat
Win Source Part Number	1042697-HCPL-354-000E
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian HCPL-354-000E CAD Model

Description

The Broadcom Limited HCPL-354-000E is a high-performance, single-channel transistor output optocoupler.

Application: AC and DC Input Signal Isolation
DC Current Transfer Ratio (Min): 20% @ 1mA
DC Current Transfer Ratio (Max): 400% @ 1mA
Continuous Forward Current: 50mA
Channel Output Current: 50mA
Package: 4-Mini-Flat
Operating Temperature: -55°C to 100°C
Rise Time: 4μs
Fall Time: 3μs
Supply and Demand Status: Balanced
Package Quantity: 3k pcs
