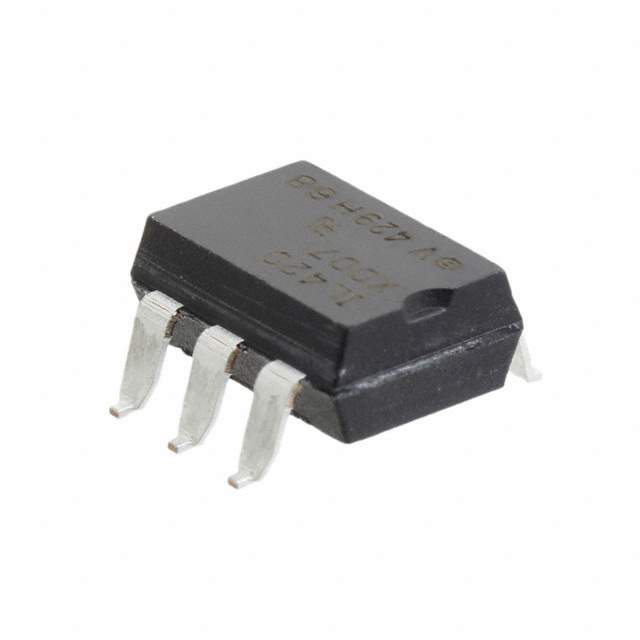

CNY17-1X009T Real Image
Same model may have multiple batches, images only for reference.

CNY17-1X009T

Part No CNY17-1X009T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD  /  Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Datasheet
CNY17-1X009T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel (TR)
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 40% @ 10mA
Current Transfer Ratio (Max) 80% @ 10mA
Turn On / Turn Off Time (Typ) 3µs, 2.3µs
Rise / Fall Time (Typ) 2µs, 2µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.39V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting SMD (SMT)
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Base Product Number CNY17
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 1,000
Win Source Part Number 1052881-CNY17-1X009T
Ultra Librarian 3D Model Ultra Librarian CNY17-1X009T CAD Model

Description

The CNY17-1X009T is an optoisolator with a transistor and photovoltaic output.

  • Input: DC
  • Maximum DC Forward Current: 60mA
  • Voltage Forward: 1.39V
  • Rise/Fall Time: 2μs/2μs
  • Output Current per Channel: 50mA
  • Number of Channels: 1
  • Voltage Isolation: 5000Vrms
  • Maximum Output Voltage: 70V
  • Package: 6-SMD gull wing
  • RoHS: Non-compliant
  • Current Transfer Ratio: Minimum of 40% @ 10mA and a maximum of 80% @ 10mA
  • Turn On/Turn Off Time: 3μs/2.3μs
  • Alternative Parts: CNY17F-1X007T, CNY17F-1X009, CNY17F-1X007, CNY17-1S-TA1, CNY17-1S, and CNY17F-1S
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.49.8000
  • Manufacturer: Vishay Semiconductor Opto Division
