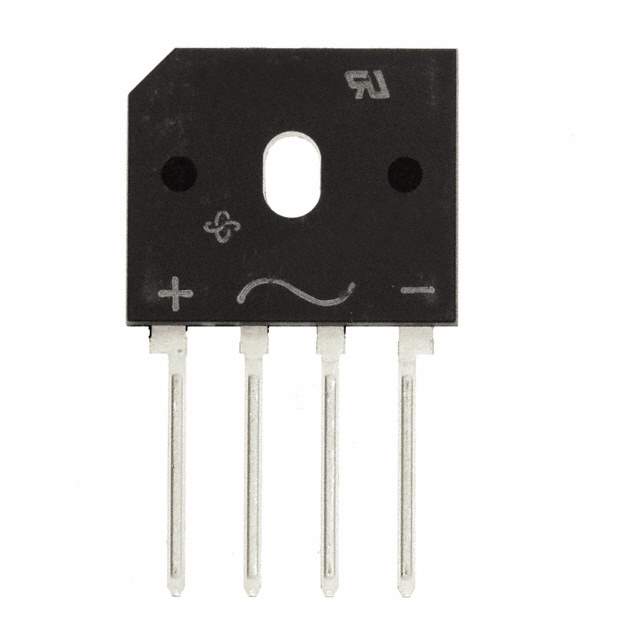

BU2508-E3/45 Real Image
Same model may have multiple batches, images only for reference.

BU2508-E3/45

Part No BU2508-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 800V 3.5A BU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 3.5A
Voltage - Forward (Vf) (Maximum) at If 1.05V at 12.5A
Current - Reverse Leakage at Vr 5μA at 600V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, BU
Supplier Device Package isoCINK+ BU
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806207-BU2508-E3/45
Ultra Librarian 3D Model Ultra Librarian BU2508-E3/45 CAD Model

Description

The BU2508-E3/45 is a single-phase diode type with a voltage - peak reverse (maximum) of 800V.

  • Current - Average Rectified (Io): 3.5A
  • Voltage - Forward (Vf) (maximum) @ If: 1.05V @ 12.5A
  • Package: 4-SIP, BU
  • Mounting Type: Through Hole
  • Temperature Range: -55°C ~ 150°C
  • Current - Reverse Leakage @ Vr: 5μA @ 600V
  • Popularity: Medium
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 800
  • MSL Level: 1 (Unlimited)
