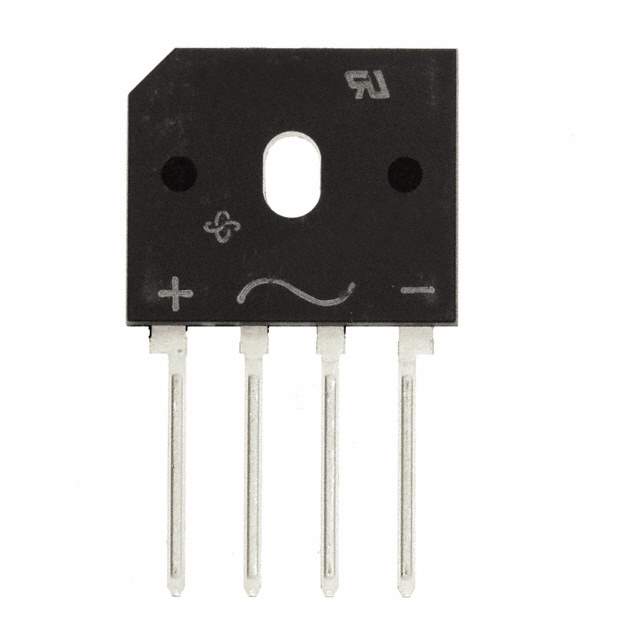

BU2506-E3/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 3.5A
Voltage - Forward (Vf) (Max) @ If 1.05V @ 12.5A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package isoCINK+ BU
Win Source Part Number 201581-BU2506-E3/45
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BU2506-E3
Introduction Date May 06, 2008
ECCN EAR99
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian BU2506-E3/45 CAD Model

Description

BU2506-E3/45 Description

The BU2506-E3/45 is a high-performance electronic component designed for efficiency and reliability in power applications. Its robust build ensures longevity and exceptional performance, making it an ideal choice for various projects that require stable and high power handling.

Features and Benefits

  • High Efficiency: Optimized for minimal energy loss, enhancing overall performance.
  • Reliable Performance: Manufactured to meet international quality standards.
  • Compact Design: Fits seamlessly into compact and constrained spaces.

Applications

  • Power Supply Regulation
  • Battery Management Systems
  • Conversion Systems for Renewable Energy

Additional details: The BU2506-E3/45 is known for its thermal management capabilities, allowing it to operate efficiently under high heat conditions. This makes it particularly suitable for industrial and demanding environments.
