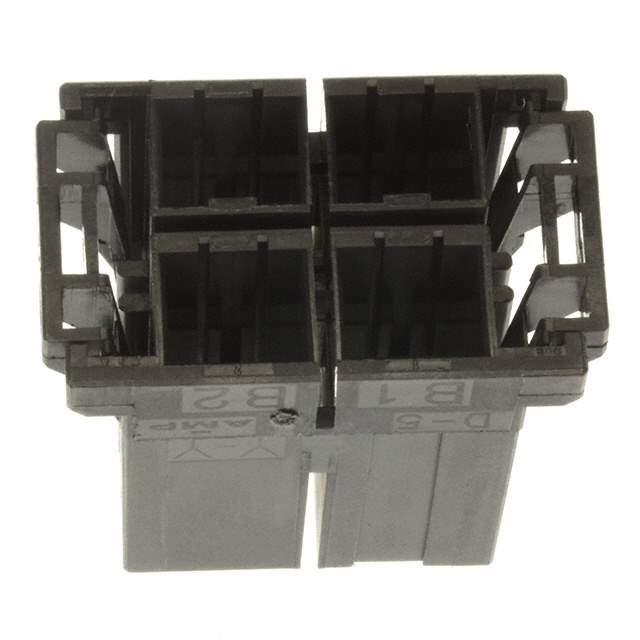

2-917807-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Dynamic D-5200
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 4
Pitch 0.400" (10.16mm)
Number of Rows 2
Row Spacing 0.400" (10.16mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Note Contacts Not Included
Base Product Number 917807
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names A29742,2266-2-917807-2,29178072
Standard Package 150
Win Source Part Number 1054866-2-917807-2
Ultra Librarian 3D Model Ultra Librarian 2-917807-2 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-5200 2-917807-2 electronic component is a part of the rectangular connectors - housings category.

  • Series: Dynamic D-5200
  • Positions: 4
  • Pitch: 0.400" (10.16mm)
  • Packaging: bulk
  • Row Spacing: 0.400" (10.16mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8538.90.6000
