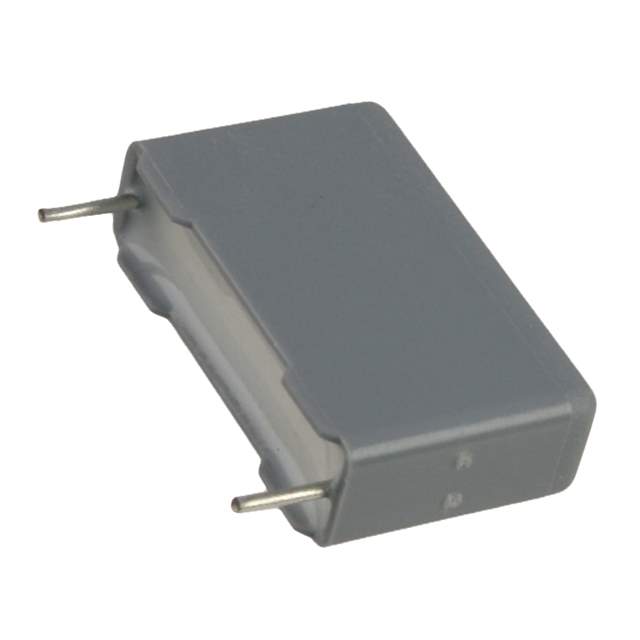

Products specifications

Categories Capacitors
Manufacturer Vishay
Packaging Bulk
Status Active
Capacitance 0.022μF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.689" L x 0.276" W (17.50mm x 7.00mm)
Height - Seated (Max) 0.532" (13.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Features Y2 Safety Rated
Win Source Part Number 201066-BFC233860223
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BFC233860223 CAD Model

Description

Product Overview

The BFC233860223 is engineered to deliver superior accuracy and stability in electronic designs. This component is versatile enough to meet the requirements of advanced electrical applications while maintaining high reliability.

Features and Benefits

  • Consistent electrical parameters
  • High current carrying capability
  • Robust temperature stability
  • Outstanding humidity resistance
  • Extended operational lifespan

Applications

  • Printed circuit board assemblies
  • High-precision analog circuits
  • Variable frequency drives
  • Advanced instrumentation
  • Communication systems

Well-suited for use in circuits demanding high reliability and precision, this capacitor is an exemplary addition to professional-grade electronic architectures.
