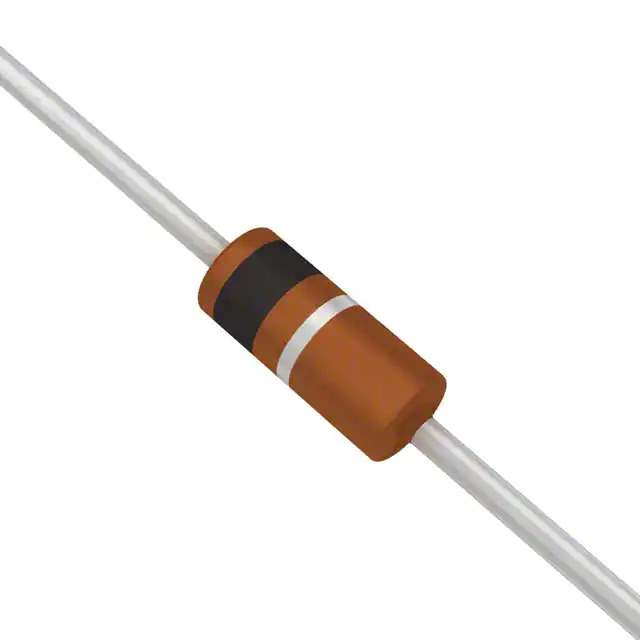

BAT85S-TAP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35 (DO-204AH)
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number BAT85
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568966-BAT85S-TAP
Ultra Librarian 3D Model Ultra Librarian BAT85S-TAP CAD Model

Description

The BAT85S-TAP is a Schottky diode that is commonly used in rectifier applications.

  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 200mA
  • Forward Voltage @ 100mA: 800mV
  • Reverse Recovery Time: 5ns
  • Reverse Leakage Current @ 25V: 2µA
  • Capacitance @ 1V, 1MHz: 10pF
  • Package: DO-204AH (DO-35) axial
  • Mounting: Through-hole
  • Manufacturer: Vishay
  • Series: BAT85
  • Usage: Widely used in various electronic devices and circuits due to its reliable performance and compact size.
