Same model may have multiple batches, images only for reference.

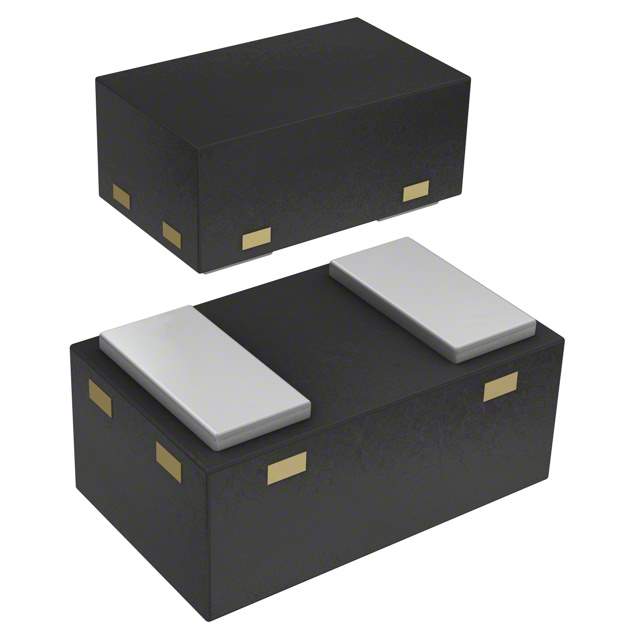

SMP1345-040LF Real Image
Same model may have multiple batches, images only for reference.

SMP1345-040LF

Part No SMP1345-040LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description DIODE RF PIN 50V 150MA 0402
Datasheet
SMP1345-040LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 50V
Current - Max 150mA
Capacitance @ Vr, F 0.2pF @ 5V, 1MHz
Resistance @ If, F 2 Ohm @ 10mA, 100MHz
Power Dissipation (Max) 750mW
Temperature Range - Operating -65°C to 150°C (TA)
Case / Package 0402
Win Source Part Number 1098576-SMP1345-040LF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SMP1345-040LF CAD Model

Description

The SMP1345-040LF is a PIN-single diode from Skyworks Solutions Inc.

  • Packaging: Reel-TR
  • Maximum Current: 150mA
  • Capacitance: 0.2pF @ 5V, 1MHz
  • Voltage-Peak Reverse (Max): 50V
  • Power Dissipation (Max): 750mW
  • Resistance @ If, F: 2 Ohm @ 10mA, 100MHz
  • Supply and Demand Status: Sufficient
