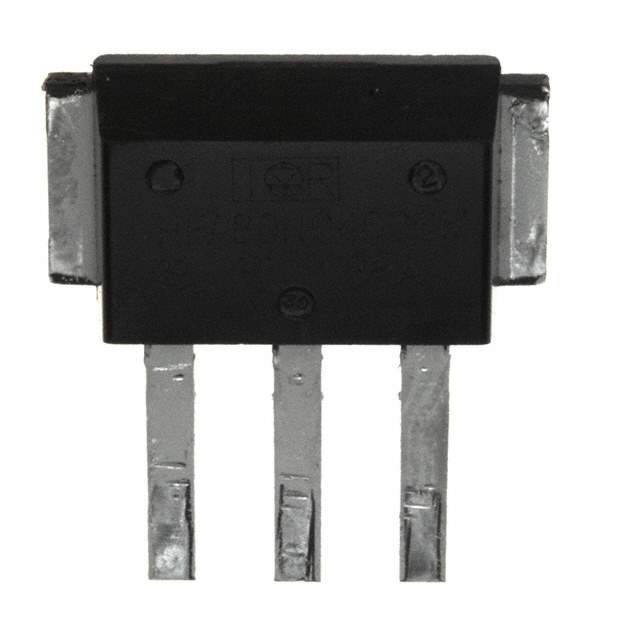

82CNQ030ASMPBF Real Image
Same model may have multiple batches, images only for reference.

82CNQ030ASMPBF

Part No 82CNQ030ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 30V 40A D618SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 470mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 40V
Operating Temperature - Junction -55°C to 150°C
Mounting Through Hole
Case / Package D-61-8-SM
Win Source Part Number 198315-82CNQ030ASMPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 82CNQ030ASMPBF CAD Model

Description

82CNQ030ASMPBF Schottky Rectifier

The 82CNQ030ASMPBF is a high-performance Schottky rectifier that combines low forward voltage drop with the efficiency needed for high-frequency applications. Perfect for use in switching modes, it ensures efficient power management in a variety of fields.

  • Applications:
    • Switching power supplies
    • DC-DC converters
    • Reverse battery protection
  • Features & Benefits:
    • Low forward voltage drop reduces conduction loss
    • Fast switching capability
    • Stable performance at high temperatures
  • Additional Details:
    • Complies with lead-free, RoHS standards
    • Enhanced lifecycle due to robust design
