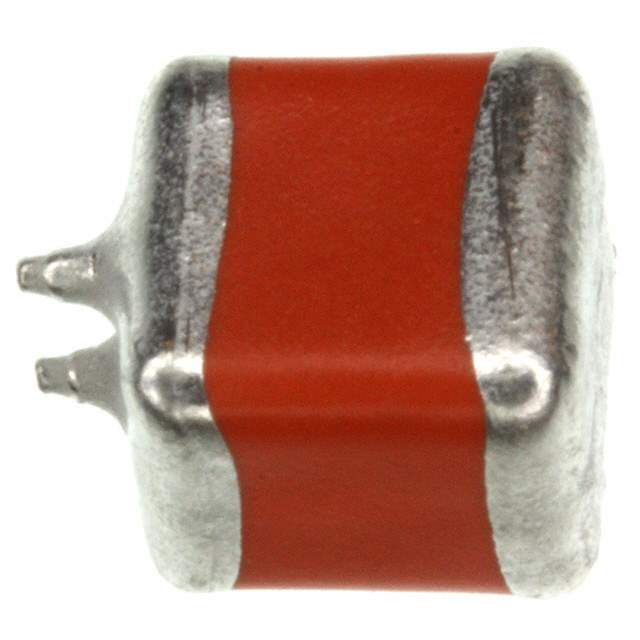

597D226X0063F2T Real Image
Same model may have multiple batches, images only for reference.

597D226X0063F2T

Part No 597D226X0063F2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20% 63V 3024 / 22 µF Conformal Coated Tantalum Capacitors 63 V 3024 (7660 Metric) 250mOhm
Datasheet
597D226X0063F2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 597D
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
Type Conformal Coated
ESR (Equivalent Series Resistance) 250mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 3024 (7660 Metric)
Dimension 0.299" L x 0.236" W (7.60mm x 6.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Manufacturer Size Code F
Features General Purpose
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8532.21.0050
Other Names 718-1933-6,718-1933-1,597D226X0063F2T-ND,718-1933-2
Standard Package 250
Win Source Part Number 1134752-597D226X0063F2T
Ultra Librarian 3D Model Ultra Librarian 597D226X0063F2T CAD Model

Description

The 597D226X0063F2T is a tantalum capacitor designed for use in general-purpose applications.

  • Capacitance: 22μF
  • Voltage Rating: 63V
  • Package: 3024 (7660 Metric)
  • Height: 5.10mm
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 250mΩ
  • RoHS Compliant: Yes
  • Operating Temperature: -55°C to 125°C
  • Ideal for: Power supplies, DC-DC converters, and audio amplifiers
