Products specifications

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 300mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 100nA @ 50V
Capacitance @ Vr, F 2.5pF @ 0V, 1MHz
Mounting Through Hole
Case / Package DO-35
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 074989-1N4150TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1N4150TR CAD Model

Description

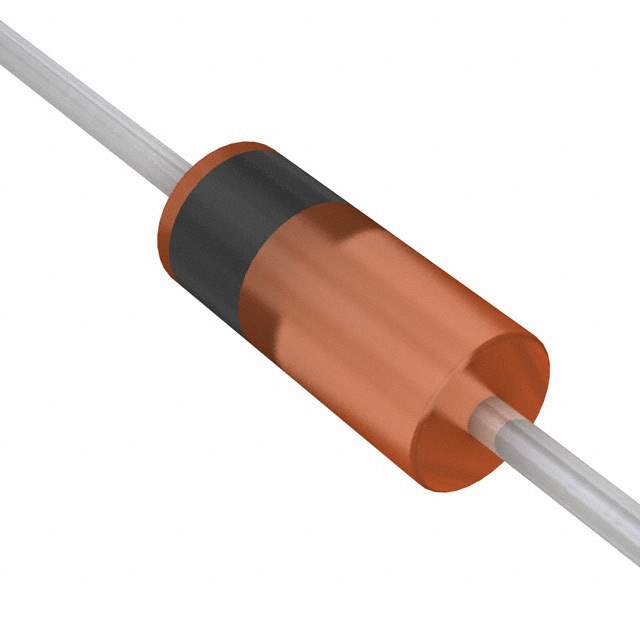

1N4150TR Diode

The 1N4150TR is a general-purpose diode renowned for its high-speed switching capabilities. This diode is ideal for applications that demand reliable performance in compact environments, thanks to its small package size.

  • Applications:
    • Communication devices
    • High-speed switching
    • Signal processing
  • Features and Benefits:
    • Fast switching speed
    • Low forward voltage drop
    • High reliability
  • Additional Details:
    • Package Type: Axial
    • Mounting Style: Through Hole
    • RoHS Compliant
