Products specifications

Category Circuit Protection>TVS - Diodes
Mfr STMicroelectronics
Series BZW06, TRANSIL™
Package Tape & Box (TB)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30.8V
Voltage - Breakdown (Min) 34.2V
Voltage - Clamping (Max) @ Ipp 64.3V
Current - Peak Pulse (10/1000µs) 62A (8/20µs)
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 950pF @ 1MHz
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15 (DO-204AC)
Base Product Number BZW06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 1,000
Win Source Part Number 1021289-BZW06-31
Ultra Librarian 3D Model Ultra Librarian BZW06-31 CAD Model

Description

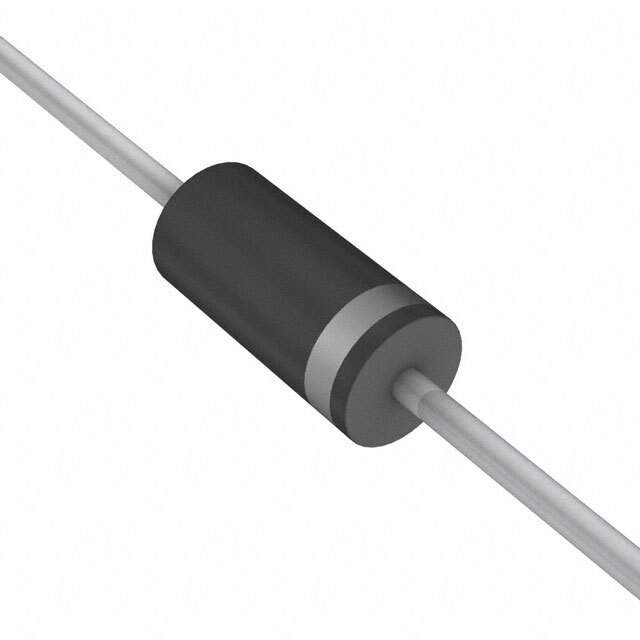

STMicroelectronics BZW06-31 Transil™ Diode

The BZW06-31 from STMicroelectronics is a robust Transil™ diode designed to provide high surge protection in a compact package. This transient voltage suppressor (TVS) diode is specifically engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events.

Key Features

  • Stand-off Voltage: The BZW06-31 has a stand-off voltage of 31V, making it suitable for a range of applications where this voltage level is prevalent.
  • Peak Pulse Power: It is capable of handling a peak pulse power of 600W (10/1000µs), which ensures reliable protection against high energy transients.
  • Fast Response Time: The device reacts quickly to transient overvoltages, providing prompt protection for your circuitry.
  • Low Clamping Voltage: Upon the occurrence of a surge, the clamping voltage of this TVS diode is low, minimizing the stress on the protected component.
  • Unidirectional and Bidirectional Versions: The BZW06 series offers both unidirectional and bidirectional protection options to suit different circuit configurations.
  • Package: Housed in a DO-15 package, the BZW06-31 is compact and suitable for high-density circuit board designs.

Applications

The BZW06-31 is ideal for a variety of applications where transient voltage protection is critical. It is commonly used in:

  • Power supply units
  • Telecommunication systems
  • Industrial electronics
  • Automotive systems
  • Consumer electronics

Quality and Reliability

STMicroelectronics is a global leader in semiconductor solutions, and the BZW06-31 is manufactured to meet the highest quality and reliability standards. The device complies with the ISO 9001 and ISO 14001 certification standards, ensuring that it meets the rigorous demands of commercial, industrial, and automotive applications.
