Same model may have multiple batches, images only for reference.

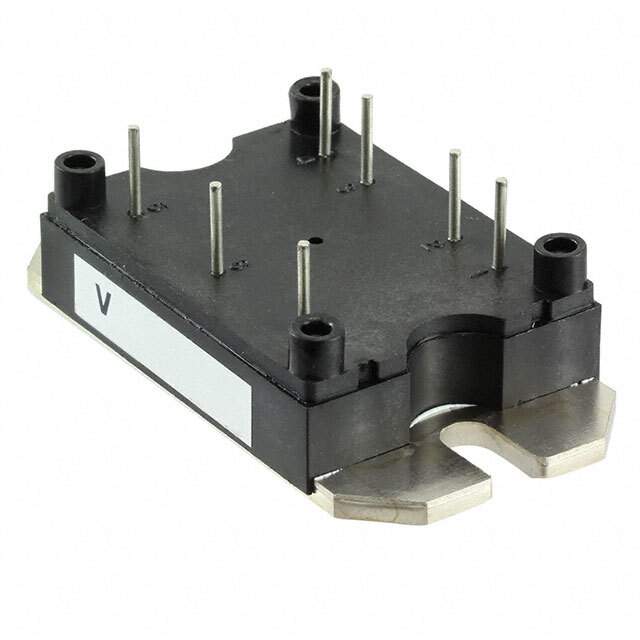

100MT160PB Real Image
Same model may have multiple batches, images only for reference.

100MT160PB

Part No 100MT160PB
Manufacturer Vishay
Catalog Bridge Rectifiers
Description THREE PHASE BRIDGE | BRIDGE RECT 3P 1.6KV 100A 7MTPB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1.6kV
Current - Average Rectified (Io) 100A
Voltage - Forward (Vf) (Maximum) at If 1.51V at 100A
Current - Reverse Leakage at Vr 5mA at 100V
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 7-MTPB
Supplier Device Package 7-MTPB
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1120967-100MT160PB
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 100MT160PB CAD Model

Description

The Vishay 100MT160PB is a three-phase standard diode with a current rating of 100A.

  • Current Rating: 100A
  • Voltage Rating: 1.6kV
  • Forward Voltage: 1.51V @ 100A
  • Current Reverse Leakage: 5mA @ 100V
  • Product Category: Discrete Semiconductor Products
  • Package: 7-MTPB
  • Status: Obsolete
  • Operating Temperature Range: -40°C to 150°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 10
  • MSL Level: 1 (unlimited)
