Same model may have multiple batches, images only for reference.

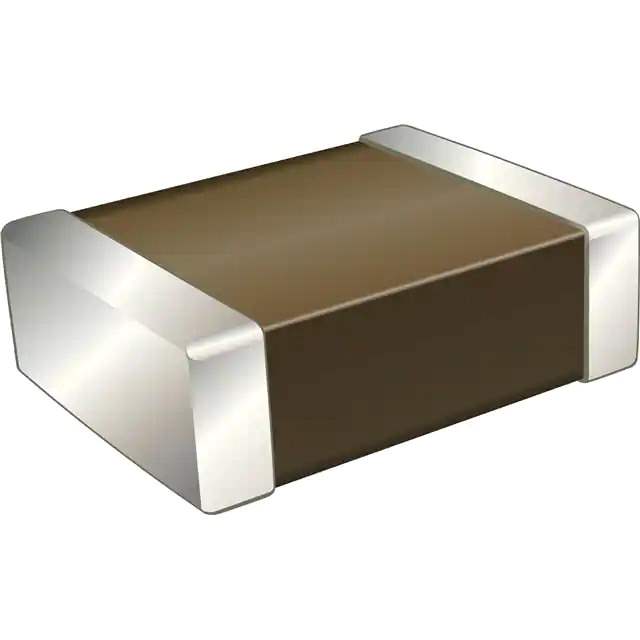

C0805X7R500-682KNE Real Image
Same model may have multiple batches, images only for reference.

C0805X7R500-682KNE

Part No C0805X7R500-682KNE
Manufacturer Venkel
Catalog Ceramic Capacitors
Description CAP CER 6800PF 50V X7R 0805 / 6800 pF ±10% 50V Ceramic Capacitor X7R 0805 (2012 Metric)
Datasheet
C0805X7R500-682KNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Venkel
Series C
Package Tape & Reel
Product Status Active
Capacitance 6800 pF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Thickness (Max) 0.035" (0.90mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 865421-C0805X7R500-682KNE
Ultra Librarian 3D Model Ultra Librarian C0805X7R500-682KNE CAD Model

Description

The 865421-C0805X7R500-682KNE is a ceramic capacitor from the C series by Venkel. It is a general-purpose capacitor with a capacitance of 6800 pF and a voltage rating of 50V.

  • Capacitance: 6800 pF
  • Voltage Rating: 50V
  • Mounting Type: Surface Mount, MLCC
  • Package: 0805 (2012 Metric)
  • Temperature Range: -55°C to 125°C
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Size: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Packaging: Tape & reel
  • Pieces: 4,000
  • Component Status: Active
  • Series: C series
