Same model may have multiple batches, images only for reference.

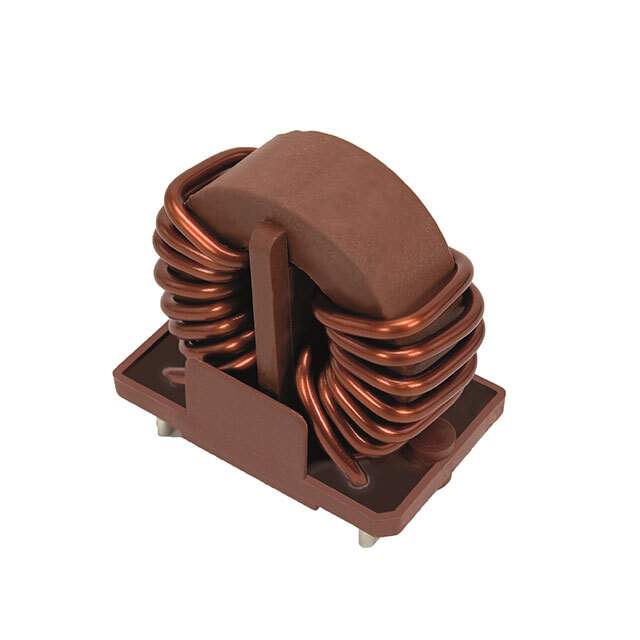

T60405-R6161-X504 Real Image
Same model may have multiple batches, images only for reference.

T60405-R6161-X504

Part No T60405-R6161-X504
Manufacturer VACUUMSCHMELZE
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 6600uH 6.5kOhm 100kHz 5A 0.042Ohm DCR Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Material Plastic
Impedance 36 mΩ
Inductance 6.6 mH
Length 29 mm
Max DC Current 4.5 A
Max Operating Temperature 130 °C
Min Operating Temperature -40 °C
RoHS Compliant
Self Resonant Frequency 400 kHz
Termination Radial
Tolerance 3 %
Win Source Part Number 1187097-T60405-R6161-X504
Categories Common Mode Chokes
Manufacturer VACUUMSCHMELZE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T60405-R6161-X504 CAD Model

Description

The VACUUMSCHMELZE Common Mode Choke is a high-quality electronic component that is perfect for use in a variety of applications.

  • Length: 29mm
  • Inductance: 6.6mH
  • Tolerance: 3%
  • Impedance: 36mΩ
  • Material: Plastic
  • Self-Resonant Frequency: 400kHz
  • Maximum DC Current: 4.5A
  • RoHS Compliant: Yes
