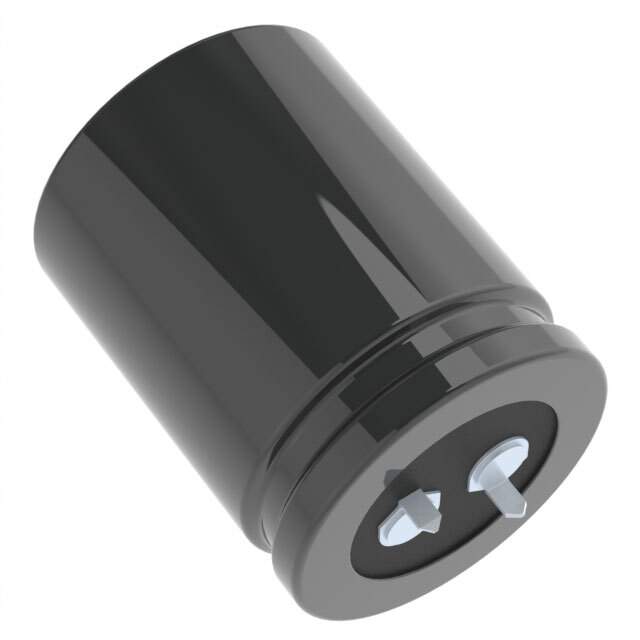

ESMH630VSN123MA45T Real Image
Same model may have multiple batches, images only for reference.

ESMH630VSN123MA45T

Part No ESMH630VSN123MA45T
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 12000UF 20% 63V SNAP / 12000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 21mOhm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMH
Package Bulk
Product Status Obsolete
Capacitance 12000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 21mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 6.19 A @ 120 Hz
Ripple Current @ High Frequency 7.428 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1338643-ESMH630VSN123MA45T
Ultra Librarian 3D Model Ultra Librarian ESMH630VSN123MA45T CAD Model

Description

The United Chemi-Con SMH series aluminum electrolytic capacitor is a high-capacity, polarized capacitor designed for use in general-purpose applications. Product name is missing.

  • Capacitance: 12000 µF
  • Voltage Rating: 63 V
  • ESR: 21mOhm @ 120Hz
  • Polarization: Polarized
  • Package: Radial, Can - Snap-In
  • Mounting Type: Through Hole
  • Diameter: 1.378" (35.00mm)
  • Height (Seated): 1.772" (45.00mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Temperature Range: -40°C to 85°C
  • Packaging: Bulk
  • Standard Package: 200
