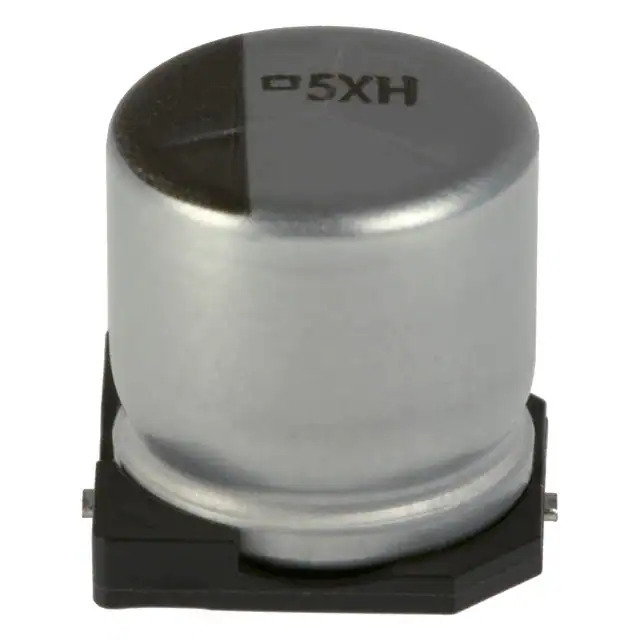

Same model may have multiple batches, images only for reference.

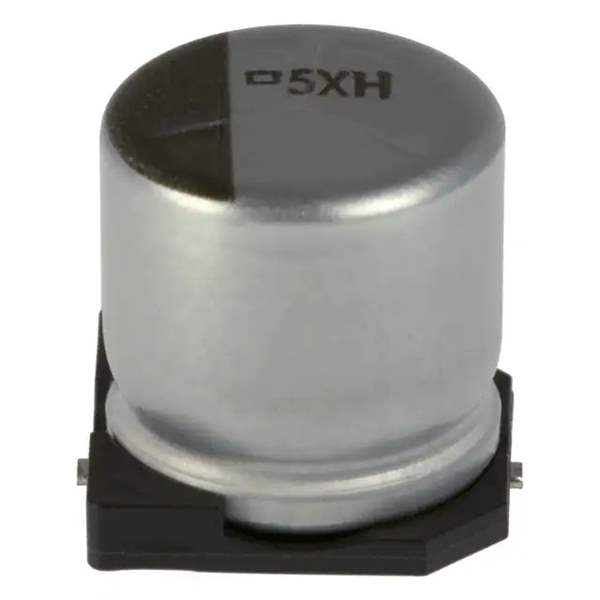

EMZR350ARA561MJA0G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZR350ARA561MJA0G

Part No EMZR350ARA561MJA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 35V SMD / 560 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 60mOhm @ 100kHz 2000 Hrs @ 105°C
Datasheet
EMZR350ARA561MJA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZR
Package Tape & Reel
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 60mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 595 mA @ 120 Hz
Ripple Current @ High Frequency 1.19 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.406" (10.30mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360373-EMZR350ARA561MJA0G
Ultra Librarian 3D Model Ultra Librarian EMZR350ARA561MJA0G CAD Model

Description

The 1360373-EMZR350ARA561MJA0G is an aluminum electrolytic capacitor from United Chemi-Con's Alchip™-MZR series.

  • Series: Alchip™-MZR
  • Mounting Type: Surface Mount
  • Capacitance: 560 µF
  • Voltage Rating: 35 V
  • ESR (Equivalent Series Resistance): 60mOhm @ 100kHz
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Applications: Automotive
  • Ripple Current: 595 mA @ 120 Hz / 1.19 A @ 100 kHz
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.394" diameter (10.00mm)
  • Height - Seated (Max): 0.406" (10.30mm)
  • REACH Status: Unaffected
  • ECCN: EAR99
