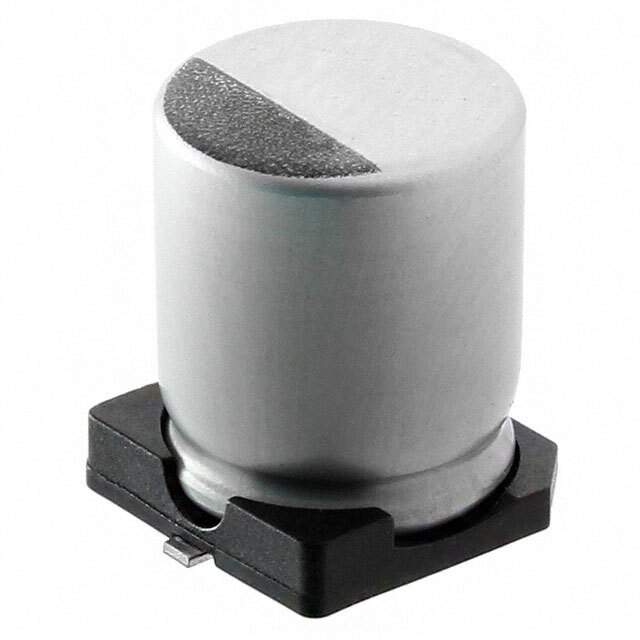

EMZR160ARA331MF80G Real Image
Same model may have multiple batches, images only for reference.

EMZR160ARA331MF80G

Part No EMZR160ARA331MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZR
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 160 mohm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 565-5138-6,565-5138-2,565-5138-1
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307277-EMZR160ARA331MF80G
Ultra Librarian 3D Model Ultra Librarian EMZR160ARA331MF80G CAD Model

Description

The EMZR160ARA331MF80G is an aluminum electrolytic capacitor electronic component manufactured by United Chemi-Con. United Chemi-Con

  • Series: Alchip™- MZR series
  • Package: tape and reel
  • Capacitance: 330 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR: 160 mohm @ 100kHz
  • Win Source Part Number: 1307277-EMZR160ARA331MF80G
  • Rating: AEC-Q200
  • Application: Automotive
  • Popularity: High
  • Supply and Demand: Balanced
