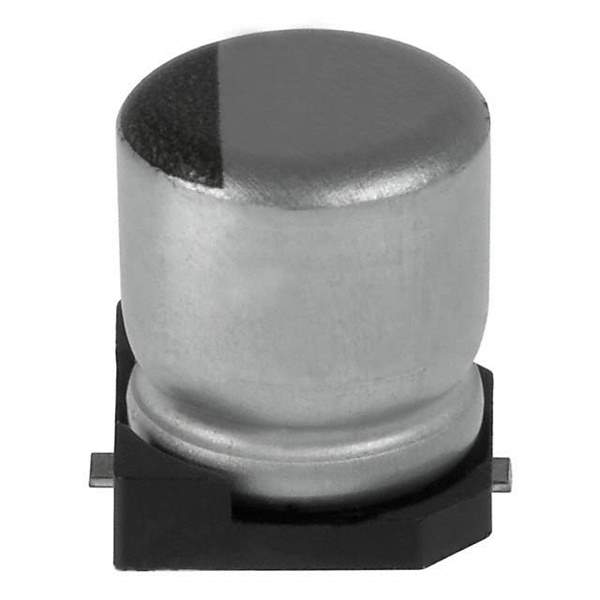

EMZA250ADA220ME61G Real Image
Same model may have multiple batches, images only for reference.

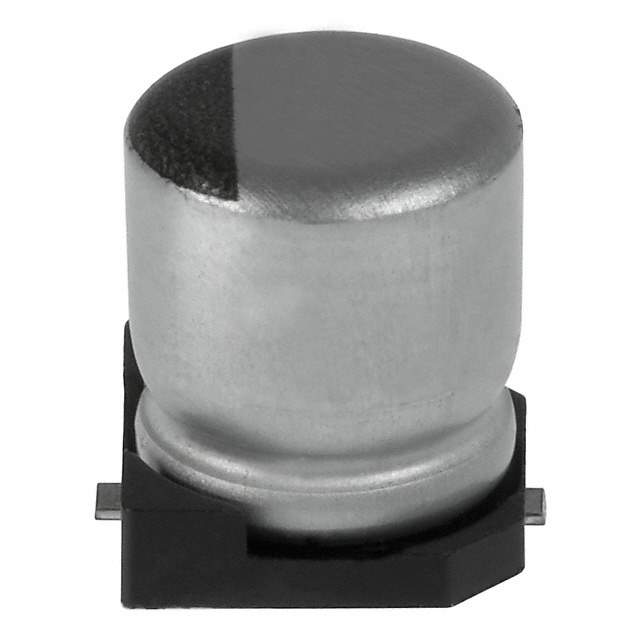

EMZA250ADA220ME61G

Part No EMZA250ADA220ME61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 25V SMD / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 64 mA @ 120 Hz
Ripple Current @ High Frequency 160 mA @ 100 kHz
Impedance 700 mOhms
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2545-1,565-2545-2,565-2545-6,Q8132892
Standard Package 1,000
Win Source Part Number 1008579-EMZA250ADA220ME61G
Ultra Librarian 3D Model Ultra Librarian EMZA250ADA220ME61G CAD Model

Description

The United Chemi-Con Alchip™-MZA series is a high-quality aluminum electrolytic capacitor manufactured by United Chemi-Con that is designed to meet the needs of various electronic applications.

  • Package: Radial, can-SMD
  • Capacitance: 22uF
  • Rated Voltage: 25V
  • Lifespan: 2000 hours @ 105°C
  • Tolerance: ±20%
  • Package Format: Tape and Reel
  • Standard Package: 1000
  • AEC-Q200 Rated: Yes
