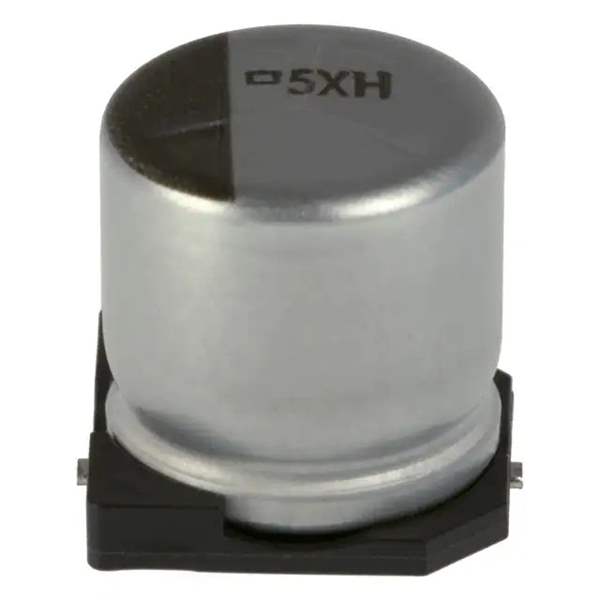

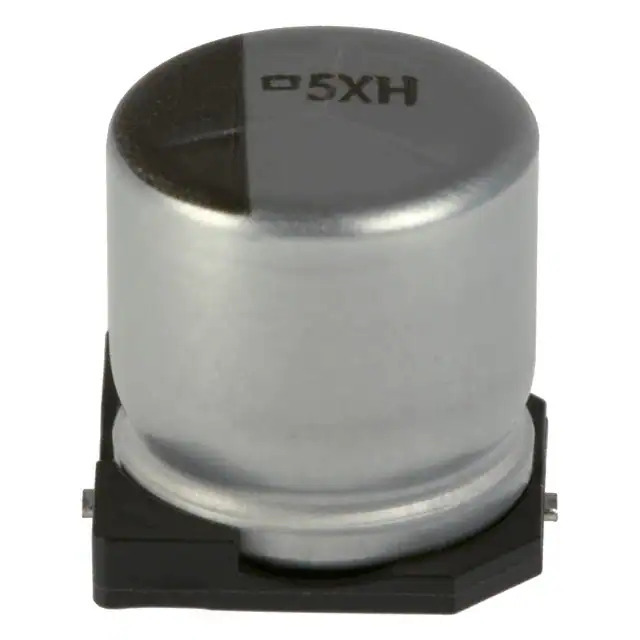

EMVH500ARA470MJA0G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMVH500ARA470MJA0G

Part No EMVH500ARA470MJA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 500mOhm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVH
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 500mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings -
Applications Automotive
Ripple Current @ Low Frequency 229.71 mA @ 120 Hz
Ripple Current @ High Frequency 247 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360297-EMVH500ARA470MJA0G
Ultra Librarian 3D Model Ultra Librarian EMVH500ARA470MJA0G CAD Model

Description

The 1360297-EMVH500ARA470MJA0G is an aluminum electrolytic capacitor from United Chemi-Con's Alchip™- MVH series.

  • Capacitance: 47 μF
  • Voltage Rating: 50 V
  • Operating Temperature: -40°C to 125°C
  • Lifetime: 2000 hours @ 125°C
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 500mOhm @ 100kHz
  • Ripple Current (Low Frequency): 229.71 mA @ 120 Hz
  • Ripple Current (High Frequency): 247 mA @ 100 kHz
  • Mounting: Surface mount
  • Packaging: Tape and reel
  • Size: 0.394" diameter (10.00mm)
  • Seated Height: 0.394" (10.00mm)
