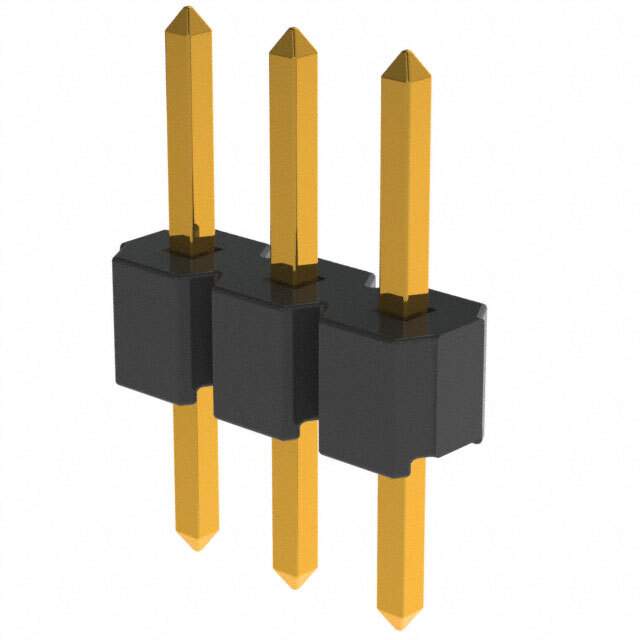

Same model may have multiple batches, images only for reference.

NRPN031PAEN-RC

Name: NRPN031PAEN-RC
Brand: Sullins Connector Solutions
SKU: 1340744
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NRPN031PAEN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2MM / Connector Header Through Hole 3 position 0.079" (2.00mm)
Datasheet	NRPN031PAEN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.331" (8.40mm)
Insulation Height	0.079" (2.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA6T) , Nylon 6T
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	150V
Contact Finish Thickness - Post	Flash
Base Product Number	NRPN031
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340744-NRPN031PAEN-RC
Ultra Librarian 3D Model	Ultra Librarian NRPN031PAEN-RC CAD Model

Alternative Products

Description

The Sullins Connector Solutions NRPN031PAEN-RC is a male pin header connector with 3 positions and a pitch-mating of 0.079" (2.00mm).

Mounting Type: Through Hole
Insulation Material: Polyamide (PA6T), Nylon 6T
Voltage Rating: 150V
Current Rating: 2A
Contact Finish: Flash Gold
Application: Board-to-Board or Cable
Packaging: Bulk
Standard Package: 1
Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
ECCN: EAR99
