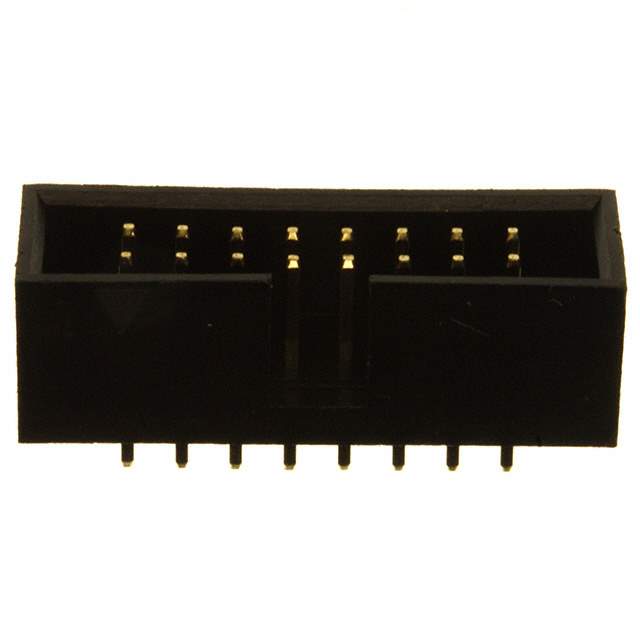

SBH11-PBPC-D08-ST-BK

Name: SBH11-PBPC-D08-ST-BK
Brand: Sullins Connector Solutions
SKU: 1332361
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SBH11-PBPC-D08-ST-BK
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Sullins Connector Solutions
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.358" (9.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Mated Stacking Heights	9.65mm, 11.2mm, 13.35mm, 18.35mm
Contact Finish Thickness - Post	Flash
Base Product Number	SBH11
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	S9171,SBH11PBPCD08STBK
Standard Package	1
Win Source Part Number	1332361-SBH11-PBPC-D08-ST-BK
Ultra Librarian 3D Model	Ultra Librarian SBH11-PBPC-D08-ST-BK CAD Model

Alternative Products

Description

The Sullins Connector Solutions SBH11-PBPC-D08-ST-BK is a rectangular connector header.

Mounting Type: Through-Hole
Positions: 16
Rows: 2
Pitch: 0.100 inches (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Feature: Keying Slot
Contact Type: Male Pin
Contact Finish: Gold
Contact Finish Thickness: Flash
Contact Length: 0.118 inches (3.00mm)
Insulation Height: 0.358 inches (9.10mm)
Temperature Range: -40°C to 105°C
RoHS3 Compliant: Yes
REACH: Unaffected
Application: Board to Board or Cable
