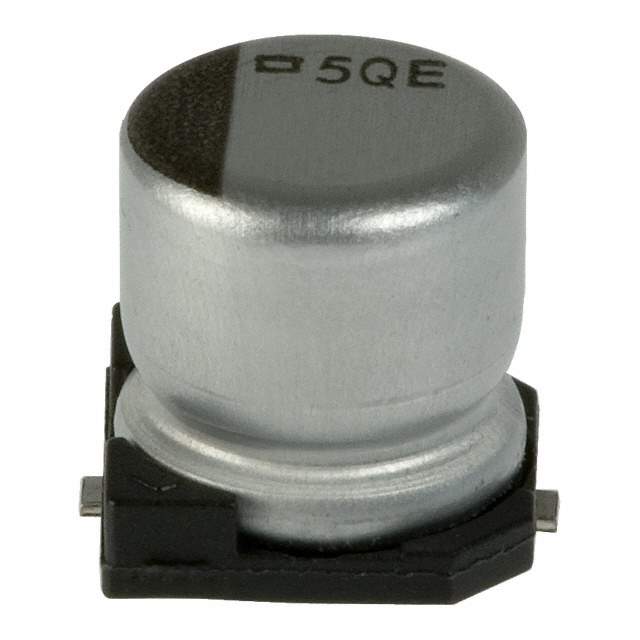

The EMVE100ADA220ME55G is an aluminum electrolytic capacitor manufactured by United Chemi-Con. These capacitors are commonly used in a wide variety of electronic circuits for filtering, smoothing, and energy storage applications. The "EMVE" series likely denotes a specific series with defined characteristics, such as operating temperature range and lifespan. The value represents 22uF, 100V capacitor.

Applications:

• Power Supplies: Filtering and smoothing output voltage.
• Audio Amplifiers: Coupling and decoupling signals.
• LED Lighting: Smoothing the DC voltage for LEDs.
• Industrial Equipment: Filtering noise and stabilizing voltage in control circuits.
• Consumer Electronics: Used in various circuits for filtering and energy storage.

Features:

• Aluminum Electrolytic Construction: Provides high capacitance in a small size.
• High Capacitance Value: 22µF capacitance.
• High Voltage Rating: 100V voltage rating.
• Long Life: Designed for extended operating life.
• Wide Operating Temperature Range: Suitable for various operating environments.

Benefits:

• Effective Filtering: Smooths out voltage ripple in power supplies.
• Stable Performance: Provides consistent performance over a wide range of temperatures.
• Long-Term Reliability: Designed for long-term operation.
• Compact Size: Small size allows for use in space-constrained applications.
• Cost-Effective Solution: Provides a cost-effective solution for filtering and energy storage.

Additional Details:

The EMVE100ADA220ME55G is designed to have a long operational lifespan, often specified in thousands of hours at its rated temperature. The ESR (Equivalent Series Resistance) is a crucial parameter that affects the capacitor's performance in high-frequency applications. The ripple current rating indicates the amount of AC current the capacitor can handle without overheating. The “55G” likely refers to the case size and lead configuration. Proper polarity is crucial when using electrolytic capacitors, as reverse polarity can cause damage or failure. It typically conforms to RoHS standards.

Detailed technical specifications, such as ESR, ripple current rating, operating temperature range, and lifespan, can be found in the United Chemi-Con datasheet.
