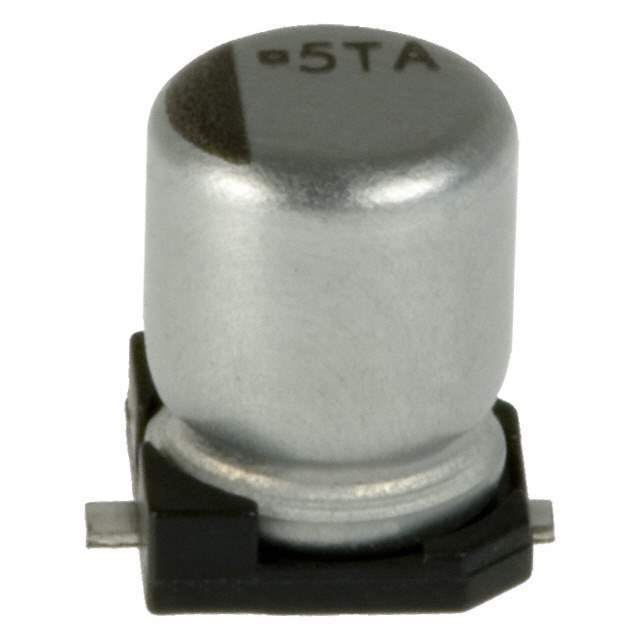

EMVA630ADA2R2MD55G Real Image
Same model may have multiple batches, images only for reference.

EMVA630ADA2R2MD55G

Part No EMVA630ADA2R2MD55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2.2UF 20% 63V SMD / 2.2 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVA
Package Tape & Reel
Product Status Last Time Buy
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 12 mA @ 120 Hz
Ripple Current @ High Frequency 18 mA @ 100 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339534-EMVA630ADA2R2MD55G
Ultra Librarian 3D Model Ultra Librarian EMVA630ADA2R2MD55G CAD Model

Description

The Alchip™- MVA series aluminum electrolytic capacitor is a general-purpose component from Alchip with a capacitance of 2.2 µF and a voltage rating of 63 V.

  • Capacitance: 2.2 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Standard Package: 2,000
  • Size/Dimension: 0.157" Dia (4.00mm)
  • Height Seated (Max): 0.205" (5.20mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD
  • Operating Temperature Range: -40°C ~ 85°C
