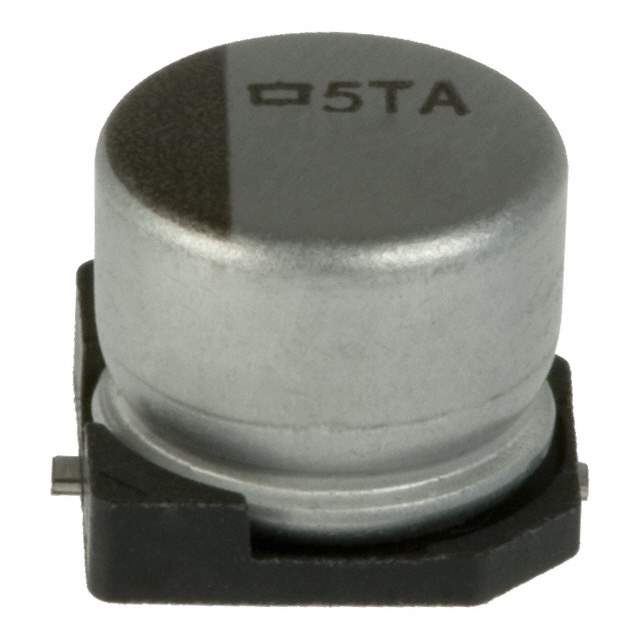

EMVA160ADA101MF55G Real Image
Same model may have multiple batches, images only for reference.

EMVA160ADA101MF55G

Part No EMVA160ADA101MF55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVA
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 70 mA @ 120 Hz
Ripple Current @ High Frequency 75.6 mA @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2089-2,565-2089-1,565-2089-6,Q4688654A
Standard Package 1,000
Win Source Part Number 1043336-EMVA160ADA101MF55G
Ultra Librarian 3D Model Ultra Librarian EMVA160ADA101MF55G CAD Model

Description

The EMVA160ADA101MF55G is an aluminum electrolytic capacitor that belongs to the Alchip™- MVA series.

  • Series: Alchip™- MVA
  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Rated Voltage: 16 V
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polar
  • Package/Case: Radial, can - SMD
  • Dimension: 0.248" Dia (6.30mm)
  • Application: General purpose
  • Manufacturer: United Chemi-Con
