Same model may have multiple batches, images only for reference.

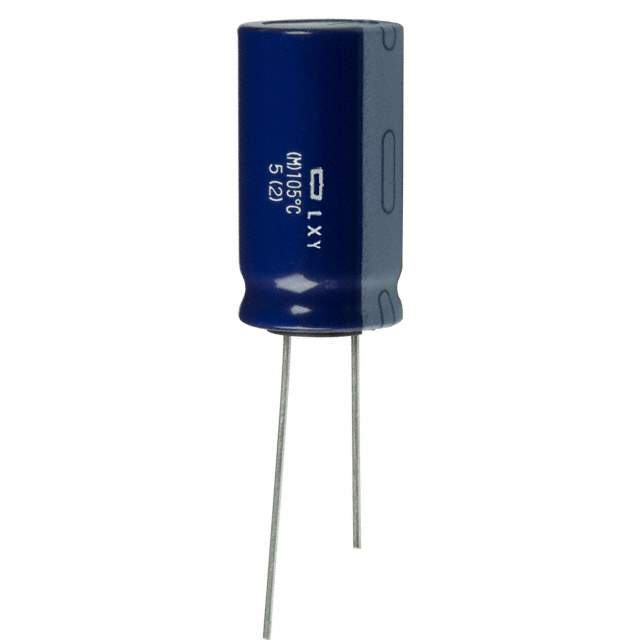

ELXY500ELL102ML30S Real Image
Same model may have multiple batches, images only for reference.

ELXY500ELL102ML30S

Part No ELXY500ELL102ML30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 50V RADIAL / Cap Aluminum Lytic 1000uF 50V 20% (16 X 30mm) Radial 7.5mm 2150mA 8000h 105°C Automotive Bulk
Datasheet
ELXY500ELL102ML30S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series LXY
Packaging Bulk
Capacitance 1000μF
Tolerance ±20%
Voltage Rating DC 50V
Lifetime @ Temp. 8000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 1.29A @ 120Hz
Ripple Current - High Frequency 2.15A @ 100kHz
Impedance 30 mOhm
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 1.240" (31.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777941-ELXY500ELL102ML30S
Popularity Medium
Supply and Demand Status Limited
Family Name LX
Introduction Date September 07, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ELXY500ELL102ML30S CAD Model

Description

The LXY series capacitor from United Chemi-Con is a through-hole radial, can-style capacitor with a capacitance of 1000μF and a voltage rating of 50V DC.

  • Tolerance: ±20%
  • Lead Spacing: 0.295 inches
  • Impedance: 30 mOhm
  • Ripple Current: 1.29A @ 120Hz, 2.15A @ 100kHz
  • Polarization: Polarized
  • Lifespan: 8000 hours @ 105°C
  • Applications: Automotive
  • Diameter: 0.630 inches
  • Height: 1.240 inches (seated)
