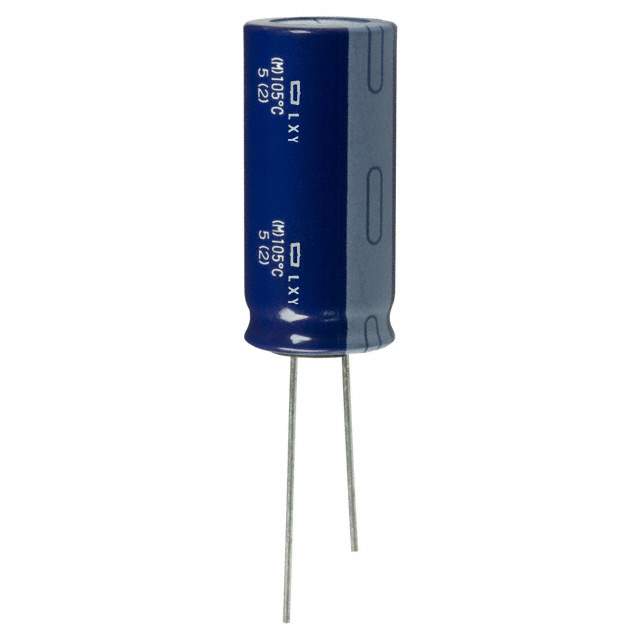

ELXY100ELL682ML35S Real Image
Same model may have multiple batches, images only for reference.

ELXY100ELL682ML35S

Part No ELXY100ELL682ML35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 6800UF 20% 10V RADIAL
Datasheet
ELXY100ELL682ML35S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series LXY
Packaging Bulk
Capacitance 6800μF
Tolerance ±20%
Voltage Rating 10V
Lifetime @ Temp. 8000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 2.1675A @ 120Hz
Ripple Current - High Frequency 2.55A @ 100kHz
Impedance 22 mOhm
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 1.437" (36.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 763482-ELXY100ELL682ML35S
Popularity Medium
Supply and Demand Status Limited
Family Name LXY
Introduction Date September 07, 2008
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ELXY100ELL682ML35S CAD Model

Description

The United Chemi-Con LXY series capacitor with a voltage rating of 10V is designed for automotive applications.

  • Capacitance: 6800μF
  • Tolerance: ±20%
  • Lifetime @ Temperature: 8000 hours @ 105°C
  • Polarized: Yes
  • Ripple Current: 2.1675A @ 120Hz, 2.55A @ 100kHz
  • Can Dimension: Radial
  • Lead Spacing: 0.295" (7.50mm)
  • Category: Capacitor
  • Temperature Range: -55°C to 105°C
