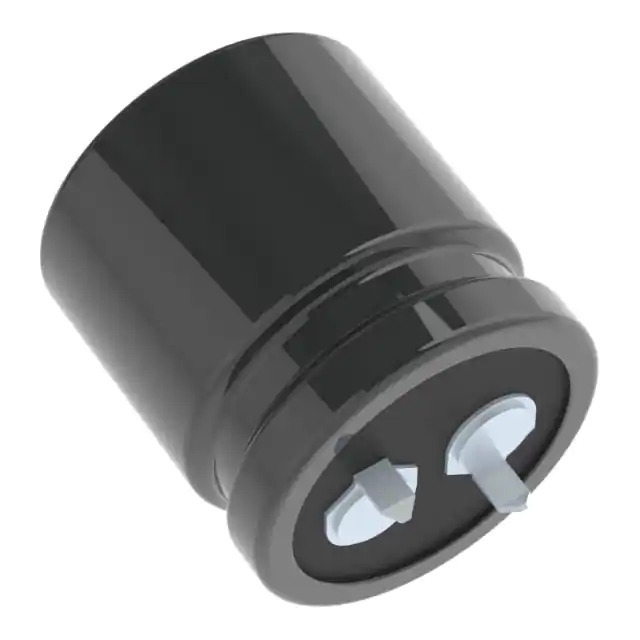

ELXS201VSN561MQ25S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXS201VSN561MQ25S

Part No ELXS201VSN561MQ25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 200V SNAP / 560 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXS
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.67 A @ 120 Hz
Ripple Current @ High Frequency 2.505 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.000" Dia (25.40mm)
Height - Seated (Max) 1.083" (27.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360682-ELXS201VSN561MQ25S
Ultra Librarian 3D Model Ultra Librarian ELXS201VSN561MQ25S CAD Model

Description

The LXS series aluminum electrolytic capacitor is a versatile component manufactured by United Chemi-Con. Bold the product name (e.g., BAV99S,135 → LXS and manufacturer (e.g., Nexperia USA Inc. → United Chemi-Con.

  • Applications: General Purpose
  • Capacitance: 560 μF
  • Voltage - Rated: 200 V
  • Operating Temperature: -25°C ~ 105°C
  • Ripple Current @ Low Frequency: 1.67 A @ 120 Hz
  • Ripple Current @ High Frequency: 2.505 A @ 50 kHz
  • Package / Case: Radial, Can - Snap-In
  • Mounting Type: Through Hole
  • Size / Dimension: 1.000" (25.40mm) Diameter
  • Height - Seated (Max): 1.083" (27.50mm)
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
