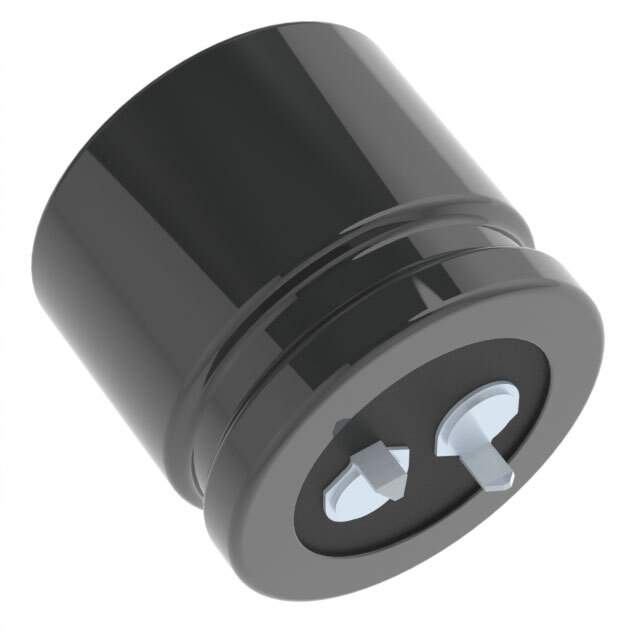

EKMS451VSN221MA25S Real Image
Same model may have multiple batches, images only for reference.

EKMS451VSN221MA25S

Part No EKMS451VSN221MA25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 450V SNAP / 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMS
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.24 A @ 120 Hz
Ripple Current @ High Frequency 1.7732 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.083" (27.50mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Standard Package 200
Win Source Part Number 1201001-EKMS451VSN221MA25S
Ultra Librarian 3D Model Ultra Librarian EKMS451VSN221MA25S CAD Model

Description

The United Chemi-Con EKMS451VSN221MA25S is an aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 450V.

  • Capacitance: 220 µF
  • Voltage Rating: 450V
  • Tolerance: ±20%
  • Ripple Current: 1.24 A @ 120 Hz and 1.7732 A @ 50 kHz
  • Series: KMS
  • Application: General Purpose
  • Mounting Type: Through-Hole
  • Package: Radial, Can-Snap-In
  • Operating Temperature: -25°C ~ 105°C
