Same model may have multiple batches, images only for reference.

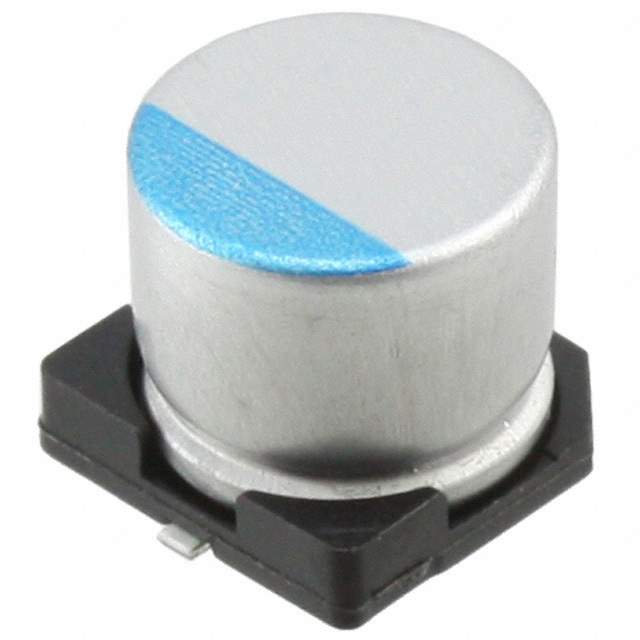

APXE160ARA680MF61G Real Image
Same model may have multiple batches, images only for reference.

APXE160ARA680MF61G

Part No APXE160ARA680MF61G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 68UF 20% 16V SMD / 68 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXE
Package Tape & Reel
Type Polymer
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 28mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 2.39 A @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.228" (5.80mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-3208-6,565-3208-1,565-3208-2
Standard Package 1,000
Win Source Part Number 992051-APXE160ARA680MF61G
Ultra Librarian 3D Model Ultra Librarian APXE160ARA680MF61G CAD Model

Description

The United Chemi-Con APXE160ARA680MF61G is a polymer capacitor designed for use in general purpose applications.

  • Package: tape & reel
  • Capacitance: 68 µF
  • Tolerance: ±20%
  • Voltage Rated: 16 V
  • ESR (Equivalent Series Resistance): 28mOhm
  • Lifetime @ Temperature: 15000 Hrs @ 105°C
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Package/Case: radial, can - SMD
  • Temperature Range: -55°C ~ 105°C
  • Dimension: 0.248" Dia (6.30mm)
  • MSL Level: 1 (Unlimited)
  • REACH status: unaffected
  • HTSUS: 8532.22.0020
  • Other names: 565-3208-6, 565-3208-1, and 565-3208-2
  • Ripple Current @ high frequency: 2.39 A @ 100 kHz
