Same model may have multiple batches, images only for reference.

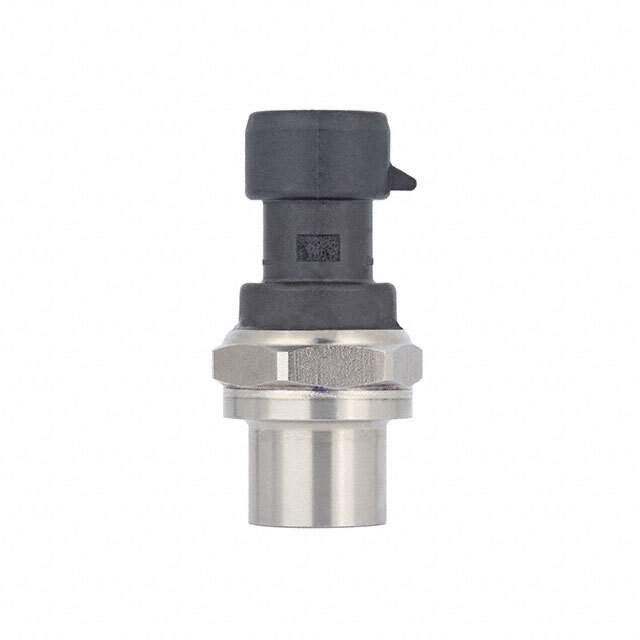

MIPAF1XX250PSAAX Real Image
Same model may have multiple batches, images only for reference.

MIPAF1XX250PSAAX

Part No MIPAF1XX250PSAAX
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description MEDIA ISOLATED PRESSURE SENSOR / Pressure Sensor 250PSI (1723.69kPa) Sealed Gauge Female - 7/16" (11.11mm) UNF Schrader 0.5 V ~ 4.5 V Cylinder, Threaded
Datasheet
MIPAF1XX250PSAAX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series MIP
Package Bulk
Pressure Type Sealed Gauge
Operating Pressure 250PSI (1723.69kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.15%
Voltage - Supply 4.75V ~ 5.25V
Port Size Female - 7/16" (11.11mm) UNF Schrader
Port Style Threaded
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 1740.45PSI (12000kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Cylinder, Threaded
Base Product Number MIPAF1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-MIPAF1XX250PSAAX
Standard Package 60
Win Source Part Number 1078869-MIPAF1XX250PSAAX
Ultra Librarian 3D Model Ultra Librarian MIPAF1XX250PSAAX CAD Model

Description

The Honeywell MIP Series Pressure Sensor is a high-precision, temperature-compensated sensor that is designed to measure sealed gauge pressure.

  • Output Type: analog voltage
  • Output Range: 0.5 V to 4.5 V
  • Accuracy: ±0.15%
  • Pressure: 250 PSI (1723.69kPa)
  • Port Size: female 7/16" (11.11mm) UNF Schrader
  • Package: threaded cylinder
  • Features: reliable and durable sensor
  • Ideal for: use in various pressure sensing applications
