Same model may have multiple batches, images only for reference.

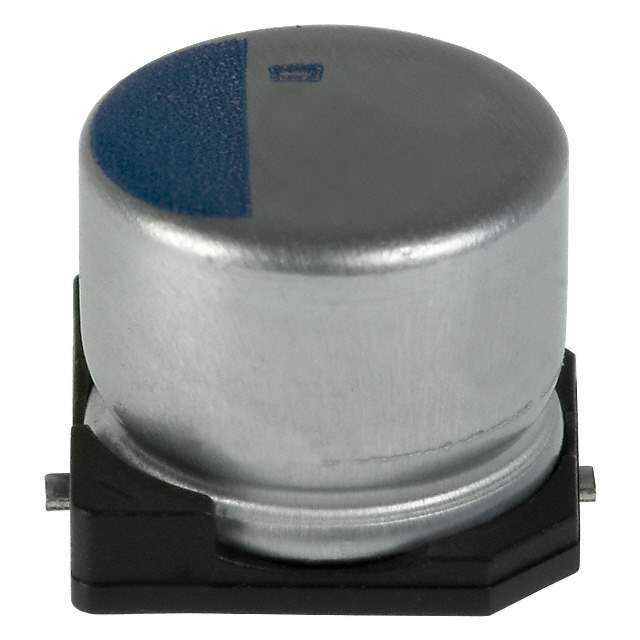

APXA250ARA220MH70G Real Image
Same model may have multiple batches, images only for reference.

APXA250ARA220MH70G

Part No APXA250ARA220MH70G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 25V SMD / 22 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 50mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 1.8 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.264" (6.70mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-3250-2,565-3250-6,565-3250-1
Standard Package 1,000
Win Source Part Number 1170057-APXA250ARA220MH70G
Ultra Librarian 3D Model Ultra Librarian APXA250ARA220MH70G CAD Model

Description

The NPCAP™-PXA series polymer capacitor is a high-performance, general-purpose component that is ideal for a wide range of applications.

  • Series: NPCAP™-PXA
  • Capacitance: 22 µF
  • Voltage: 25 V
  • Operating Temperature: -55°C to 105°C
  • ESR: 50mOhm
  • Lifetime: 15000 hours @ 105°C
  • Package: Radial, Can-Type Surface Mount
  • Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Packaging: Tape and Reel
  • Manufacturer: United Chemi-Con
  • Standard Package: 1000
