Same model may have multiple batches, images only for reference.

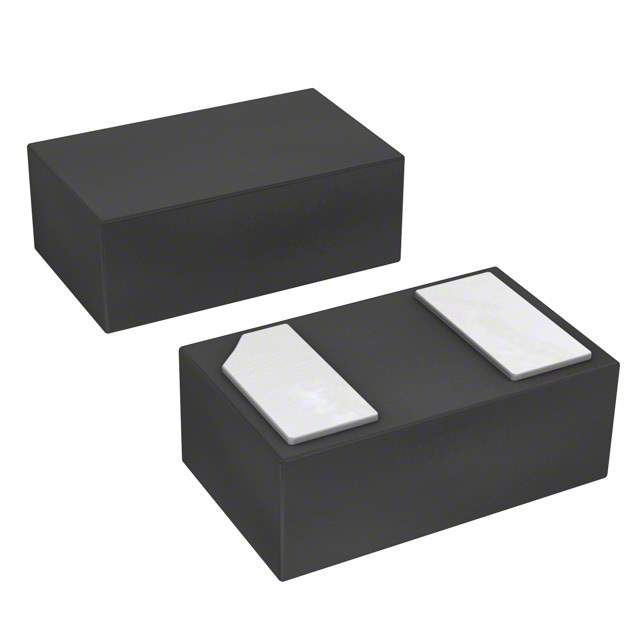

AOZ8211DI-05 Real Image
Same model may have multiple batches, images only for reference.

AOZ8211DI-05

Part No AOZ8211DI-05
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Uni-Dir 5V 2-Pin DFN / TVS DIODE 5VWM 10VC 2DFN
Datasheet
AOZ8211DI-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 10V
Peak Pulse Current(Ippm) 5.5A (8/20μs)
Power Dissipation - Pd 50W
Applications General Purpose
Capacitance @ Frequency 16pF @ 1MHz
Temperature Range - Operating -40°C to 85°C (TJ)
Mounting SMD (SMT)
Case / Package 2-DFN (1x0.6)
Win Source Part Number 078262-AOZ8211DI-05
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 10k pcs
Family Name AOZ8211DI-05
Introduction Date September 05, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian AOZ8211DI-05 CAD Model

Description

AOZ8211DI-05 Description

The AOZ8211DI-05 excels at protecting sensitive electronics from ESD damage. Its sophisticated design and superior protective capabilities make it an essential component for maintaining circuit reliability.

Applications/Projects

  • Automotive electronics
  • Home automation devices
  • Smart appliances

Features and Benefits

  • Effective ESD protection rating of 15kV
  • Reduced size for easy integration
  • Minimal impact on data signals

Additional Details

The AOZ8211DI-05's advanced design meets stringent ESD protection requirements, making it perfect for use in environments prone to electrostatic discharge. Its versatile compatibility with different electronic systems ensures broad application scope.
