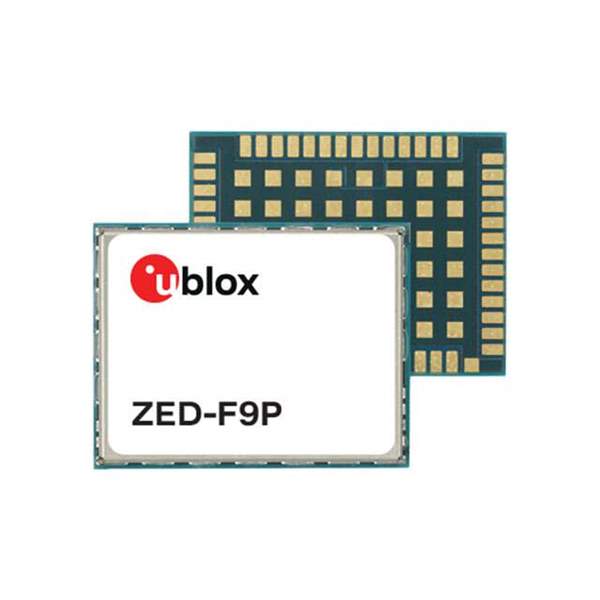

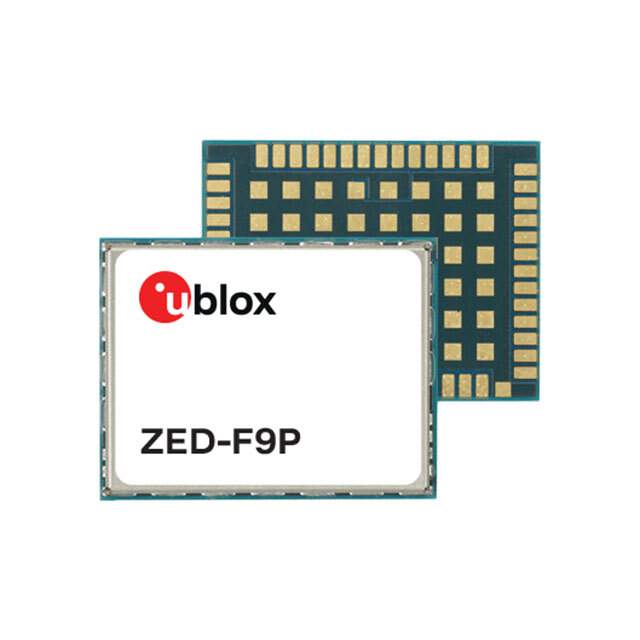

ZED-F9P-04B Real Image
Same model may have multiple batches, images only for reference.

ZED-F9P-04B

Part No ZED-F9P-04B
Manufacturer U-blox
Catalog RF Receivers
Description MOD RF RX PRECISION GNSS, RTK / ZED-F9P RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz -167dBm 921.6kbps 54-LGA (22x17)
Datasheet
ZED-F9P-04B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Receivers
Mfr U-Blox
Series ZED-F9P
Package Tape & Reel
Frequency 1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz
Sensitivity -167dBm
Data Rate (Max) 921.6kbps
Modulation or Protocol BeiDou, Galileo, GLONASS, GNSS, GPS
Applications General Purpose
Current - Receiving 130mA
Data Interface I2C, SPI, UART, USB
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 54-SMD Module
Supplier Device Package 54-LGA (22x17)
Standard Package 250
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8526.91.0020
Win Source Part Number 1338169-ZED-F9P-04B
Ultra Librarian 3D Model Ultra Librarian ZED-F9P-04B CAD Model

Description

The U-Blox ZED-F9P RF Receiver is a high-performance product that is designed to meet the demands of a wide range of applications.

  • Series: ZED-F9P
  • Packaging: Tape and Reel
  • Application: General Purpose
  • Standard Package: 250
  • Frequency: 1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz
  • Data Interface: I2C, SPI, UART, and USB
  • Sensitivity: -167dBm
  • Maximum Data Rate: 921.6 kbps
  • Supports: BeiDou, Galileo, GLONASS, GNSS, and GPS
  • Receiving Current: 130mA
  • Voltage Supply: 2.7V to 3.6V
  • Mounting: Surface Mounted
  • Package/Case: 54-SMD Module
  • Supplier Device Package: 54-LGA (22x17)
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: 7A994
  • REACH: Unaffected
  • HTSUS: 8526.91.0020
