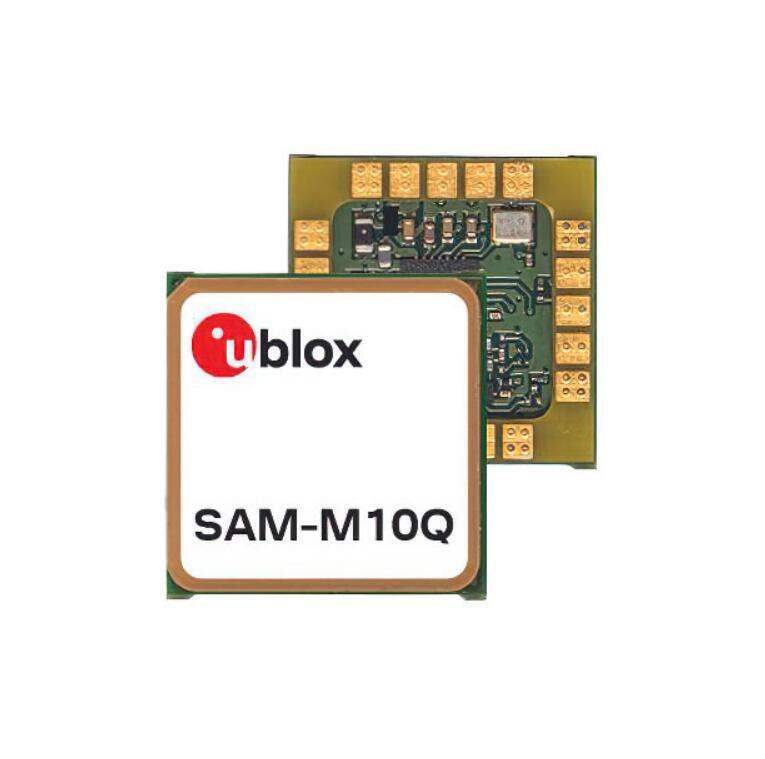

SAM-M10Q-00B u-blox
Same model may have multiple batches, images only for reference.

SAM-M10Q-00B

Part No SAM-M10Q-00B
Manufacturer U-blox
Catalog RF Receivers
Description M10 GNSS LGA PATCH ANTENNA MOD
Datasheet
SAM-M10Q-00B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201157-SAM-M10Q-00B
Win Source Part Number Cross
Manufacturer u-blox
Category RF and Wireless RF Receivers
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Frequency 1.575GHz, 1.602GHz
Sensitivity -165dBm
Data Rate (Max) 400kbps
Modulation or Protocol Galileo, GLONASS, GPS
Applications GPS
Data Interface I²C, UART
Ultra Librarian 3D Model Ultra Librarian SAM-M10Q-00B CAD Model

Description

The u-blox RF receiver is a high-performance module designed for GPS applications.

  • Frequency: 1.575GHz, 1.602GHz
  • Supports: Galileo, GLONASS, GPS
  • Sensitivity: -165dBm
  • Data Interfaces: I²C, UART
  • Data Rate (Max): 400kbps
  • Packaging: Tape and Reel
