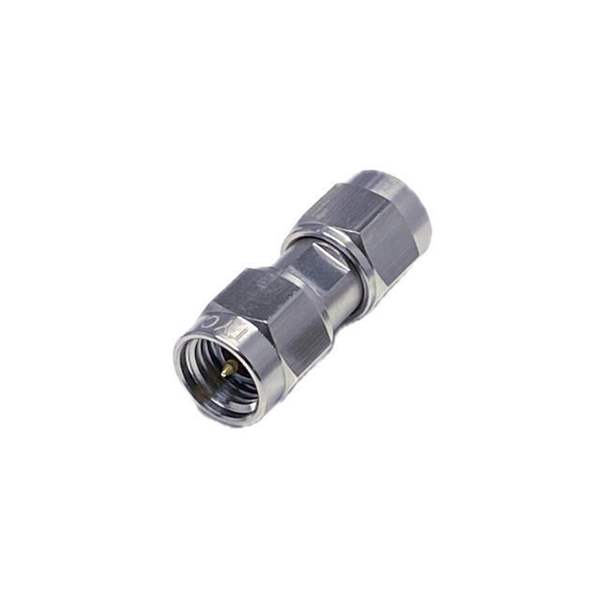

3.5-A-PP TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3.5-A-PP

Part No 3.5-A-PP
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description Adapter Coaxial Connector 3.5mm Plug, Male Pin To 3.5mm Plug, Male Pin 50 Ohms
Datasheet
3.5-A-PP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series 3.5mm to 3.5mm
Center Gender Male to Male
Convert From (Adapter End) 3.5mm Plug, Male Pin
Convert To (Adapter End) 3.5mm Plug, Male Pin
Impedance 50 Ohms
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded
Frequency - Max 26.5GHz
Center Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian 3.5-A-PP CAD Model
