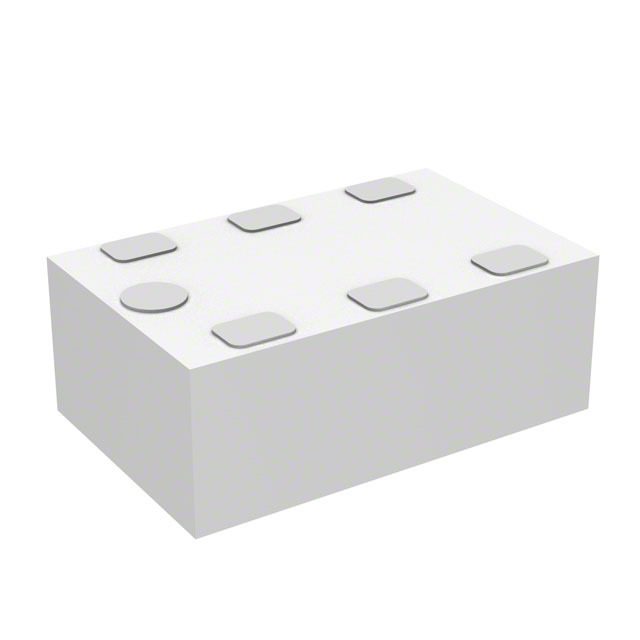

Same model may have multiple batches, images only for reference.
DC0710J5005AHF TTM Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DC0710J5005AHF

Part No DC0710J5005AHF
Manufacturer TTM Technologies
Catalog RF Directional Coupler
Description RF DIR COUPLER 700MHZ-1GHZ 0805
Datasheet
DC0710J5005AHF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Coupler Type Standard
Frequency 700MHz ~ 1GHz
Coupling Factor 5.5dB
Insertion Loss 0.6dB
Power - Max 2W
Return Loss -24dB
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ultra Librarian 3D Model Ultra Librarian DC0710J5005AHF CAD Model
